Gene–Pathway network plot (cnetplot) — plot

Visualises the top GSEA pathways as a bipartite network where pathway nodes are connected to their constituent gene nodes. Gene nodes are colored by the gene-level statistic used for GSEA (e.g. log2 fold change). Node proximity reflects shared pathway membership (network layout), not gene–gene correlation — see plot_pathway_correlation_network() for co-expression structure.

Usage

plot_pathways(
  gsea_result,
  effect_size,
  show_pathways = 5,
  effect_size_threshold = 0,
  subtitle_effect_size_label = "effect size",
  max_genes_shown = NULL,
  gene_node_size = 0.7,
  line_size = 0.5,
  pathway_color = "black",
  pathway_label_size = 4,
  pathway_cats = NULL,
  pathway_cat_colors = NULL,
  legend_pathway_fill_title = "Pathway category",
  legend_pathway_fill_dot_size = 5,
  gene_color = "grey30",
  gene_label_size = 2.5,
  title = "Effect sizes of genes in selected pathways",
  legend_pathway_size_title = "Num. genes\n in pathway",
  legend_fixed_dot_size = NULL,
  legend_color_title = "Gene effect size",
  colorkey_breaks = NULL,
  colorkey_limits = NULL,
  color_low = "blue",
  color_mid = "white",
  color_high = "red",
  plot_margin = c(0.5, 0.5, 0.5, 0.5),
  legend_position = "right"
)

Arguments

gsea_result: A gseaResult object returned by run_gsea() or clusterProfiler::GSEA().
effect_size: named numeric vector. Gene-level statistics used to color gene nodes (e.g. log2 fold change, t-statistic). Names must be gene symbols matching those in gsea_result. Typically the gene_vec element returned by run_gsea().
show_pathways: integer(1) Number of top pathways to display (default 5). Must be a single positive whole number.
effect_size_threshold: numeric(1) Only show gene nodes whose abs(effect_size) >= effect_size_threshold (default 0). Set to 0 to show all genes. Must be a single finite non-negative value.
subtitle_effect_size_label: character(1) String placed inside abs() in the auto-generated subtitle when a threshold is applied (default "effect size"). Change to match your effect-size metric, e.g. "log2FC", "t-statistic", or "z-score".
max_genes_shown: integer(1) Maximum number of gene nodes to display (default NULL, no limit). If the number of genes belonging to the top show_pathways pathways and passing effect_size_threshold exceeds this value, the threshold is raised adaptively (via quantile of abs(effect_size) among pathway genes) until at most max_genes_shown genes remain. The effective threshold will never drop below effect_size_threshold. Must be a single positive whole number.
gene_node_size: numeric(1) Relative size of gene circles/nodes (default 0.7). Must be a single positive value.
line_size: numeric(1) Relative thickness of edges (default 0.5). Must be a single positive value.
pathway_color: character(1) Color of pathway label text (default "black").
pathway_label_size: numeric(1) Font size of pathway labels (default 4). Must be a single positive value.
pathway_cats: named character vector or NULL (default NULL). Optionally maps pathway IDs to a biological process category name (e.g. c(MTORC1_SIGNALING = "Signaling", UV_RESPONSE_DN = "DNA damage")). Partial mappings are allowed: only pathway nodes whose IDs appear in names(pathway_cats) receive a category fill color; any displayed pathway not present in names(pathway_cats) is left unfilled (transparent overlay). Must be used together with pathway_cat_colors. data(hallmark_pathway_categories) provides a ready-to-use term-to-category mapping for MSigDB Hallmark gene sets.
pathway_cat_colors: named character vector or NULL (default NULL). Maps each category name to a color string (hex or named R color), e.g. c(Signaling = "#e41a1c", "DNA damage" = "#ff7f00"). Must cover every category value that appears in pathway_cats. Node shape is set to 21 (filled circle with border) so fill and colour remain independent aesthetics — the gene fold-change gradient on colour is unaffected. Must be used together with pathway_cats.
legend_pathway_fill_title: character(1) or NULL. Title for the pathway-fill legend when pathway_cats is non-NULL (default "Pathway category"). Set to NULL for no legend title.
legend_pathway_fill_dot_size: numeric(1) Size of the dot/point keys in the pathway-category fill legend (default 5). Increase this value if the colored dots in the legend appear too small. Must be a single positive numeric value. Ignored when pathway_cats is NULL.
gene_color: character(1) Color of gene label text (default "grey30").
gene_label_size: numeric(1) Font size of gene labels (default 2.5). Must be a single positive value.
title: character(1) Plot title (default "Effect sizes of genes in selected pathways").
legend_pathway_size_title: character(1) Title for the node-size legend (default "Num. genes\n in pathway"). Set to NULL to show the legend without a title.
legend_fixed_dot_size: numeric vector of gene-count values whose dot sizes should appear as keys in the size legend (default NULL, automatic). For example, c(50, 100, 200) causes exactly those three dot sizes to be shown. The supplied values also become the scale limits (using their range), so the visual size mapping is identical across multiple plots combined with patchwork. Values outside the range are squished to the nearest extreme rather than dropped. All values must be finite and positive.
legend_color_title: character(1) or expression() Title for the color scale legend (default "Gene effect size"). Set to NULL to show the legend without a title. Use expression() to supply plotmath expressions.
colorkey_breaks: numeric vector of values at which tick marks and labels are drawn on the color legend (default NULL, automatic). For example, c(-2, -1, 0, 1, 2) to show five labeled ticks. When supplied without any color_* arguments, the existing cnetplot palette is preserved and only the break positions are updated.
colorkey_limits: numeric vector of length 2 giving the lower and upper bounds of the color scale (default NULL, automatic). Values outside this range are mapped to the nearest extreme color. Most useful together with colorkey_breaks. Like colorkey_breaks, this preserves the cnetplot palette when no color_* arguments are set.
color_low: character(1) Color for the low end of the scale (default "blue"). Combine with color_high for a 2-color sequential scale, or also set color_mid for a 3-color diverging scale. Set to NULL to use cnetplot's default palette (only when no color_* arguments are specified).
color_mid: character(1) Color for the midpoint of the scale (default "white"). When non-NULL, a 3-color diverging ggplot2::scale_color_gradient2() is used. Set to NULL to use a 2-color ggplot2::scale_color_gradient() when color_low or color_high are set. To restore cnetplot's original palette, set all color_* arguments to NULL.
color_high: character(1) Color for the high end of the scale (default "red"). Set to NULL (with color_low and color_mid also NULL) to use cnetplot's default palette.
plot_margin: numeric vector of length 4 giving the plot margin in lines: c(top, right, bottom, left) (default c(0.5, 0.5, 0.5, 0.5)). All values must be finite and non-negative. Increase the left/right values if node labels are being clipped at the edges.
legend_position: character(1) Position of the legend (default "right"). Passed to ggplot2::theme(legend.position = ...). Common values include "right", "left", "top", "bottom", or "none" to hide the legend.

Value

A ggplot2 object.

Examples

# \donttest{
ggplot2::theme_set(theme_bw2())
data(hallmark_t2g)
set.seed(1)
all_genes <- unique(hallmark_t2g$gene)
gene_vec  <- setNames(rnorm(length(all_genes)), all_genes)
res <- run_gsea(gene_vec, term2gene = hallmark_t2g)
#>

# Basic usage
plot_pathways(
    gsea_result           = res$gsea_result,
    effect_size           = res$gene_vec,
    show_pathways         = 5,
    effect_size_threshold = 1.5
)
#> Scale for colour is already present.
#> Adding another scale for colour, which will replace the existing scale.


# Adaptively cap gene nodes at 50: effect_size_threshold is raised automatically
# so at most 50 genes appear; the subtitle reports the effective threshold used
plot_pathways(
    gsea_result        = res$gsea_result,
    effect_size        = res$gene_vec,
    show_pathways      = 5,
    max_genes_shown    = 50,
    subtitle_effect_size_label  = "log2FC"
)
#> Scale for colour is already present.
#> Adding another scale for colour, which will replace the existing scale.


# 3-color diverging scale (purple -> white -> orange)
plot_pathways(
    gsea_result   = res$gsea_result,
    effect_size   = res$gene_vec,
    show_pathways = 5,
    color_low     = "purple",
    color_mid     = "white",
    color_high    = "orange",
    effect_size_threshold = 1.5
)
#> Scale for colour is already present.
#> Adding another scale for colour, which will replace the existing scale.


# 2-color sequential scale (white -> red)
plot_pathways(
    gsea_result   = res$gsea_result,
    effect_size   = res$gene_vec,
    show_pathways = 5,
    color_low     = "white",
    color_high    = "red",
    effect_size_threshold = 1.5
)
#> Scale for colour is already present.
#> Adding another scale for colour, which will replace the existing scale.

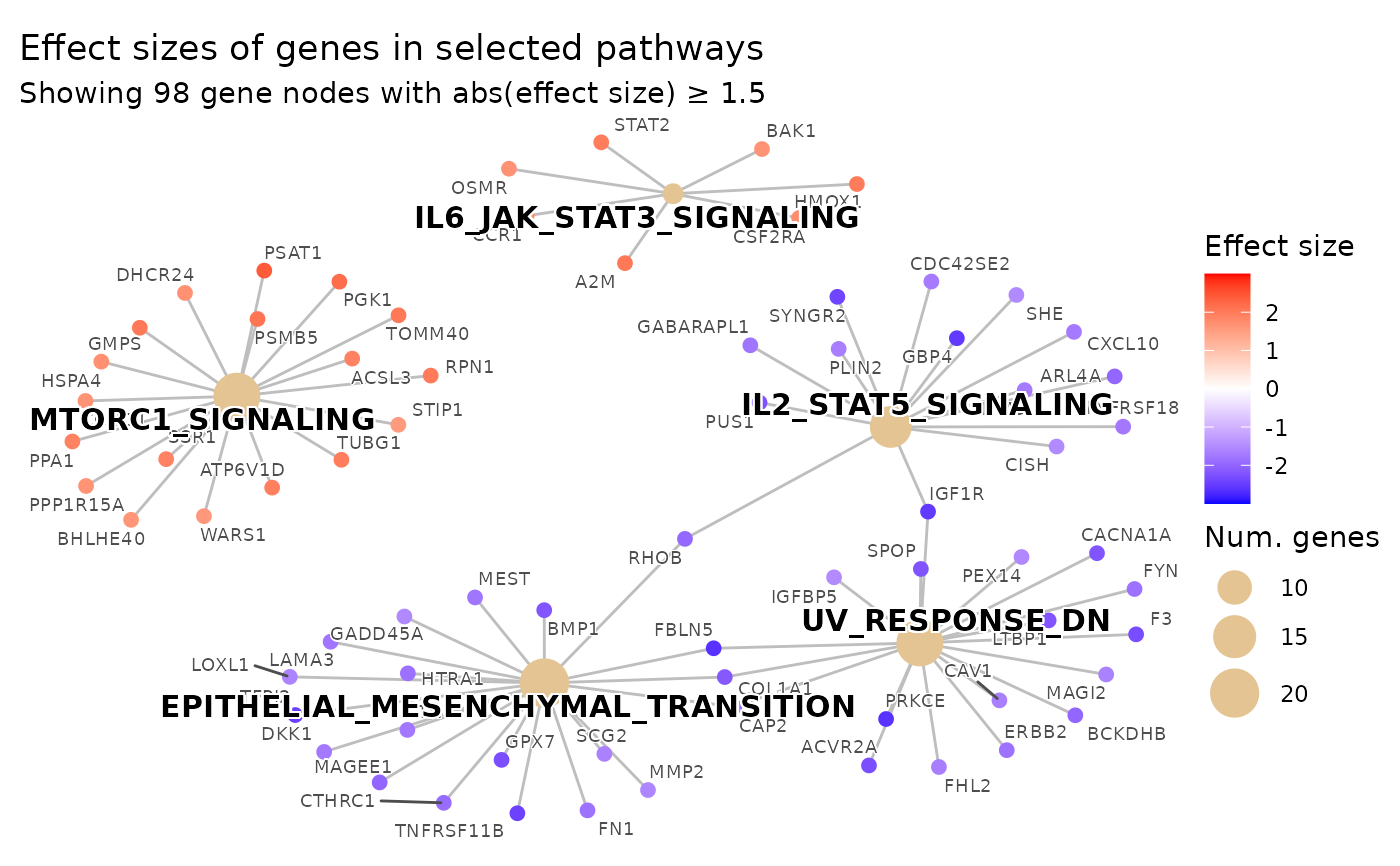

# Custom colors with explicit breaks and limits
plot_pathways(
    gsea_result     = res$gsea_result,
    effect_size     = res$gene_vec,
    show_pathways   = 5,
    color_low       = "blue",
    color_mid       = "white",
    color_high      = "red",
    colorkey_breaks = c(-2, -1, 0, 1, 2),
    colorkey_limits = c(-3, 3),
    effect_size_threshold = 1.5
)
#> Scale for colour is already present.
#> Adding another scale for colour, which will replace the existing scale.

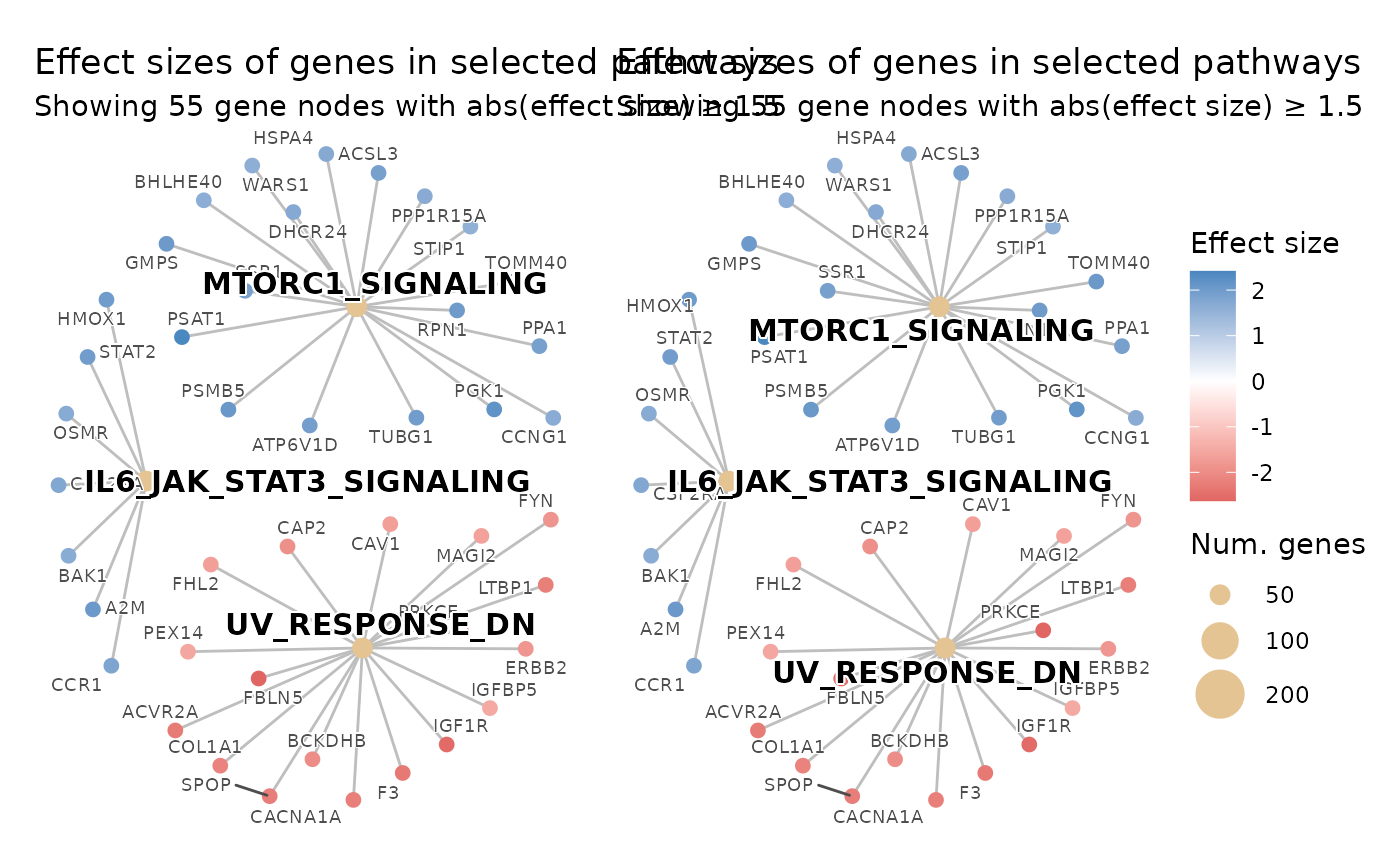

# Two plots with a shared dot-size legend for use with patchwork.
# Both plots use the same legend_fixed_dot_size so the size keys are
# identical across panels, making visual comparisons meaningful.
shared_dot_sizes <- c(50, 100, 200)

p1 <- plot_pathways(
    gsea_result           = res$gsea_result,
    effect_size           = res$gene_vec,
    show_pathways         = 3,
    legend_fixed_dot_size = shared_dot_sizes,
    effect_size_threshold = 1.5
)
#> Scale for colour is already present.
#> Adding another scale for colour, which will replace the existing scale.
p2 <- plot_pathways(
    gsea_result           = res$gsea_result,
    effect_size           = res$gene_vec,
    show_pathways         = 3,
    legend_fixed_dot_size = shared_dot_sizes,
    effect_size_threshold = 1.5
)
#> Scale for colour is already present.
#> Adding another scale for colour, which will replace the existing scale.

patchwork::wrap_plots(p1, p2, guides = "collect")

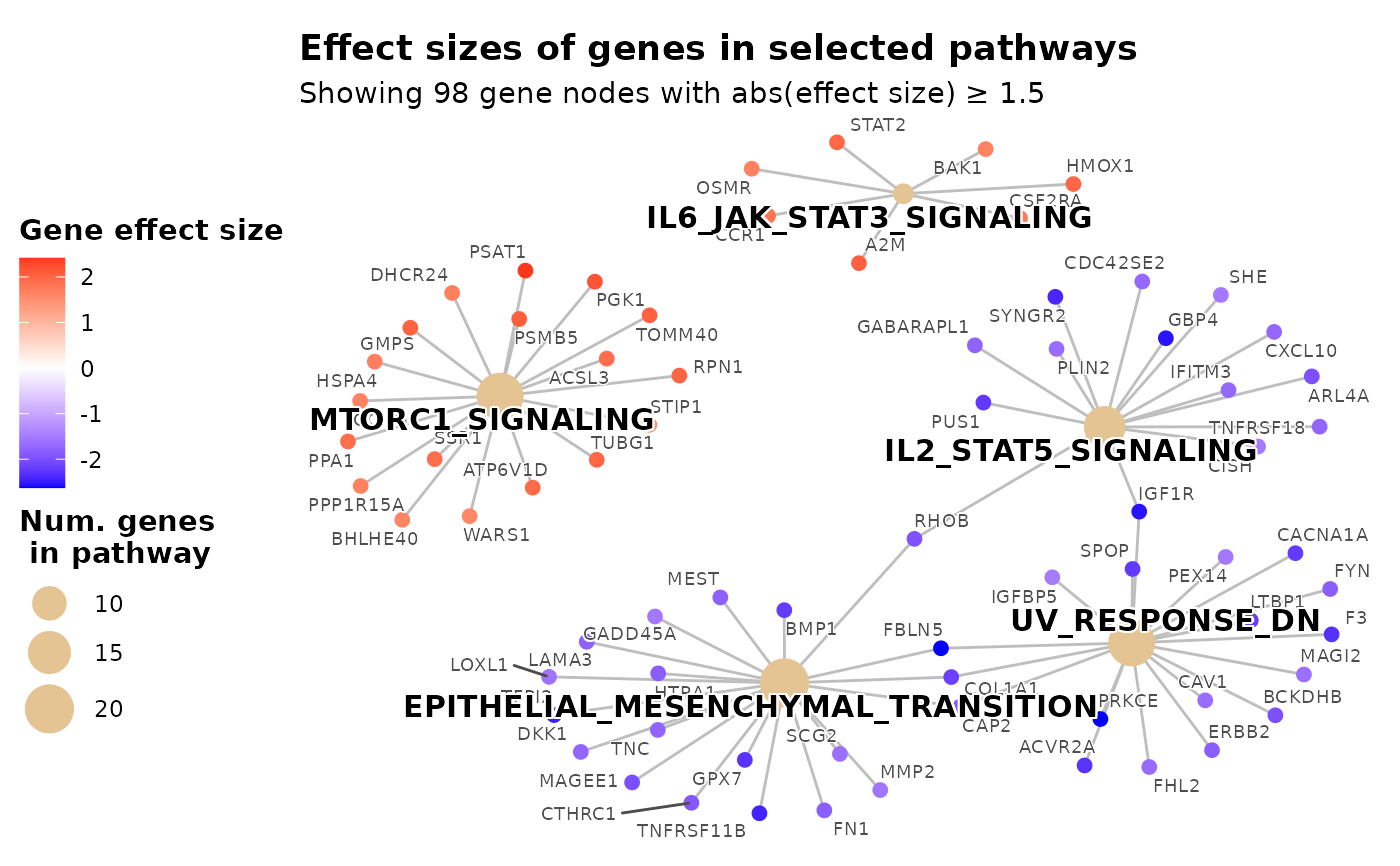

# Move legend to the left side
plot_pathways(
    gsea_result           = res$gsea_result,
    effect_size           = res$gene_vec,
    show_pathways         = 5,
    legend_position       = "left",
    effect_size_threshold = 1.5
)
#> Scale for colour is already present.
#> Adding another scale for colour, which will replace the existing scale.

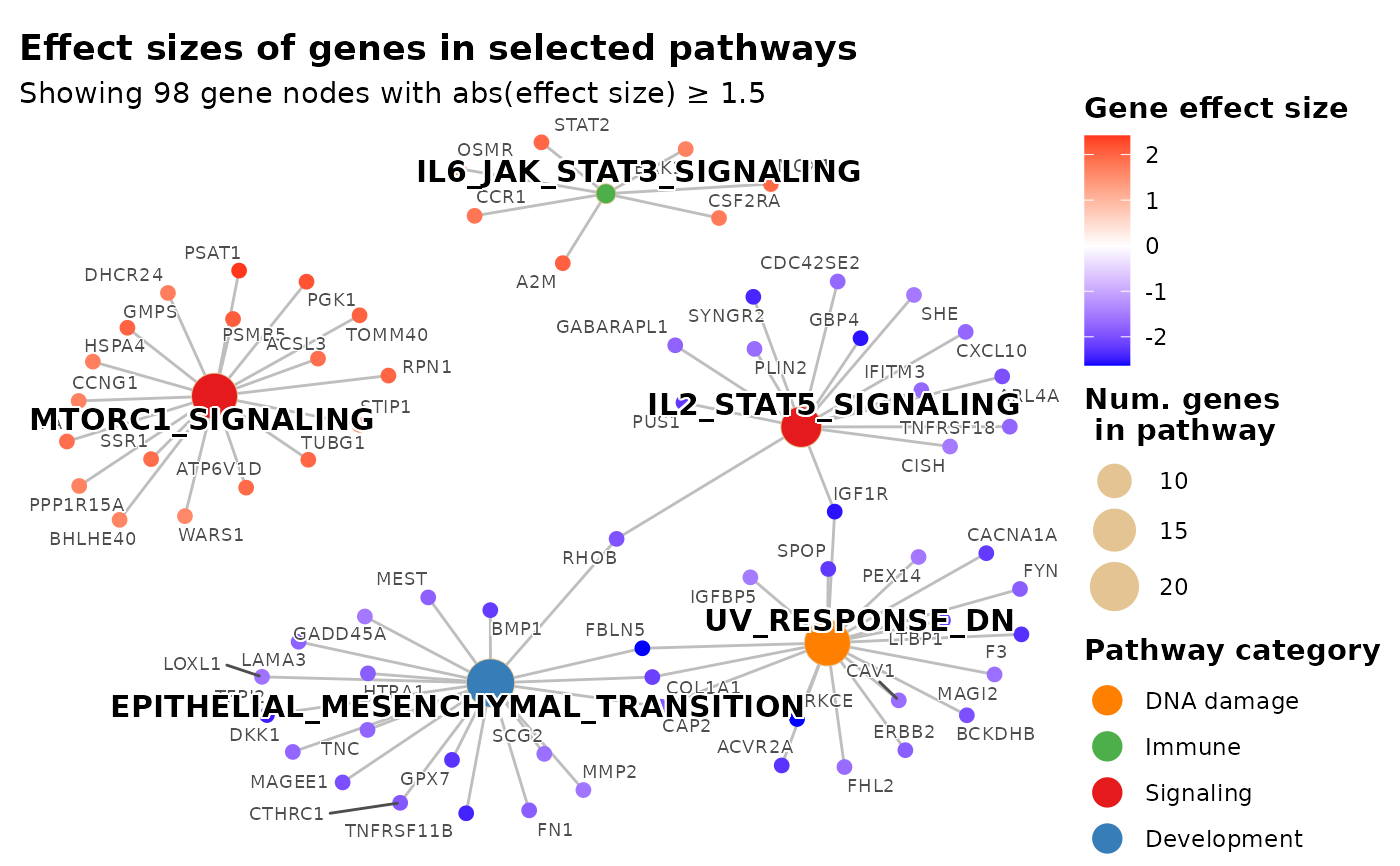

# Color pathway nodes by biological process category using hallmark_pathway_categories
data(hallmark_pathway_categories)
top_ids <- utils::head(res$gsea_result@result$ID, 5)
# Look up the process category for each displayed pathway
pathway_cats <- setNames(
    hallmark_pathway_categories$process_category[
        match(top_ids, hallmark_pathway_categories$term)
    ],
    top_ids
)
# One color per category; covers all eight Hallmark categories
cat_palette <- c(
    Signaling = "#e41a1c", Development = "#377eb8", Immune = "#4daf4a",
    Metabolic = "#984ea3", "DNA damage" = "#ff7f00", Proliferation = "#a65628",
    "Cellular component" = "#f781bf", Pathway = "#999999"
)
plot_pathways(
    gsea_result               = res$gsea_result,
    effect_size               = res$gene_vec,
    show_pathways             = 5,
    pathway_cats              = pathway_cats,
    pathway_cat_colors        = cat_palette,
    legend_pathway_fill_title = "Pathway category",
    effect_size_threshold     = 1.5
)
#> Scale for colour is already present.
#> Adding another scale for colour, which will replace the existing scale.

# }
