Stacked percent bar chart for two categorical variables — plot_2_categorical

Create a stacked percent bar chart of an x categorical variable broken down by a second categorical variable. The plot includes within-group percentages, group sample sizes above each bar, and (optionally) a subtitle showing Cramer's V and the test p-value.

Usage

plot_2_categorical_vars(
  d,
  xvar,
  yvar,
  xvar_label = NULL,
  yvar_label = NULL,
  yvar_colors = NULL,
  yvar_text_colors = NULL,
  title = NULL,
  title_nchar_wrap = NULL,
  show_effect_size = TRUE,
  n_pct_size = 3.5,
  inside_bar_stats = c("pct", "n", "pct_and_n", "none"),
  inside_bar_text_bold = FALSE,
  pct_digits = 0,
  flip = FALSE,
  xaxis_labels_nchar_wrap = 20,
  y_max = 110,
  n_ypos = y_max - 5,
  include_overall_bar = FALSE,
  overall_label = "Overall"
)

Arguments

d

A data.frame containing the variables.

xvar

Character scalar, name of the categorical x variable (column in d).

yvar

Character scalar, name of the categorical y variable (column in d).

xvar_label

Optional character scalar to use for the x axis label.

yvar_label

Optional character scalar to use for the legend label.

yvar_colors

Optional character vector of colours to use for the y-variable levels. Can be either:

An unnamed vector of length equal to nlevels(d[[yvar]]) (positional mapping)
A named character vector with names corresponding to yvar levels (partial or complete mapping)

Provide colour names (e.g. "red") or hex codes (e.g. "#FF0000"). If using a named vector, unmapped levels will be filled with ggplot2's default palette. If NULL (default), ggplot2's default palette is used for all levels.

yvar_text_colors

Optional named character vector of colors for the text inside bars. Names should correspond to the levels of yvar. If a level is not included in the vector, the text color defaults to black. If NULL (default), all text is black.

title

Optional character scalar for the plot title.

title_nchar_wrap

Optional integer scalar. Maximum number of characters per line of title. If NULL (default), no wrapping is applied.

show_effect_size

Logical; if TRUE the subtitle will include Cramer's V and p-value.

n_pct_size

Numeric scalar. Point size used for the percent labels inside the stacked bars and for the group N labels above bars. Must be a single positive numeric value.

inside_bar_stats

Character scalar controlling what statistics are printed inside the stacked bars. One of "pct" (default; shows within-group percentage), "n" (shows count only), "pct_and_n" (shows percentage with count in parentheses, e.g. "12% (34)"), or "none" (no labels inside bars).

inside_bar_text_bold

Logical scalar (default FALSE). If TRUE, the text inside the bars will be displayed in bold.

pct_digits

Integer scalar (default 0). Number of decimal places to show for the within-group percent labels (e.g. 0 => "12%", 1 => "12.3%"). Must be a single non-negative numeric value.

flip

Logical scalar (default FALSE). If TRUE the plot is flipped to show horizontal bars.

xaxis_labels_nchar_wrap

Integer scalar. Maximum number of characters per line for x-axis group labels. Longer labels will be wrapped to multiple lines.

y_max

Numeric scalar. Maximum y-axis limit for the plot.

n_ypos

Numeric scalar. y-axis position for the group N labels.

include_overall_bar

Logical scalar (default FALSE). If TRUE, a pooled "Overall" bar showing the marginal distribution of yvar across all observations is prepended to the left of the per-group bars, separated by a solid vertical line.

overall_label

Character scalar (default "Overall"). Label used for the pooled bar when include_overall_bar = TRUE.

Value

A list of the ggplot2 object, Cramer's V effect size, p-value.

Examples

ggplot2::theme_set(theme_bw2())
data(mtcars)
mtcars$cyl <- factor(mtcars$cyl)
mtcars$gear <- factor(mtcars$gear)

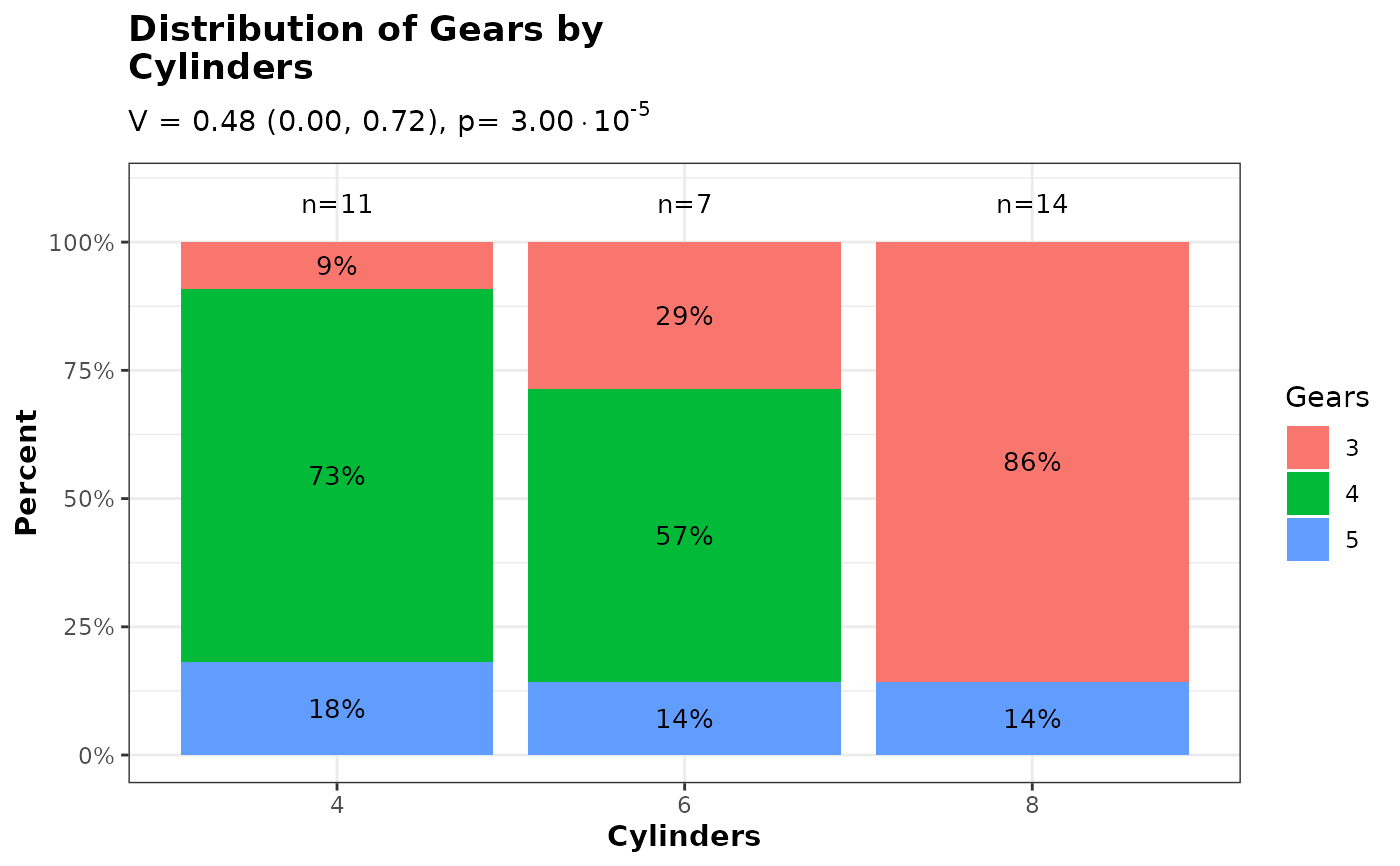

# Default usage
p <- plot_2_categorical_vars(
  d = mtcars,
  xvar = "cyl",
  yvar = "gear",
  xvar_label = "Cylinders",
  yvar_label = "Gears"
)
p$ggplot


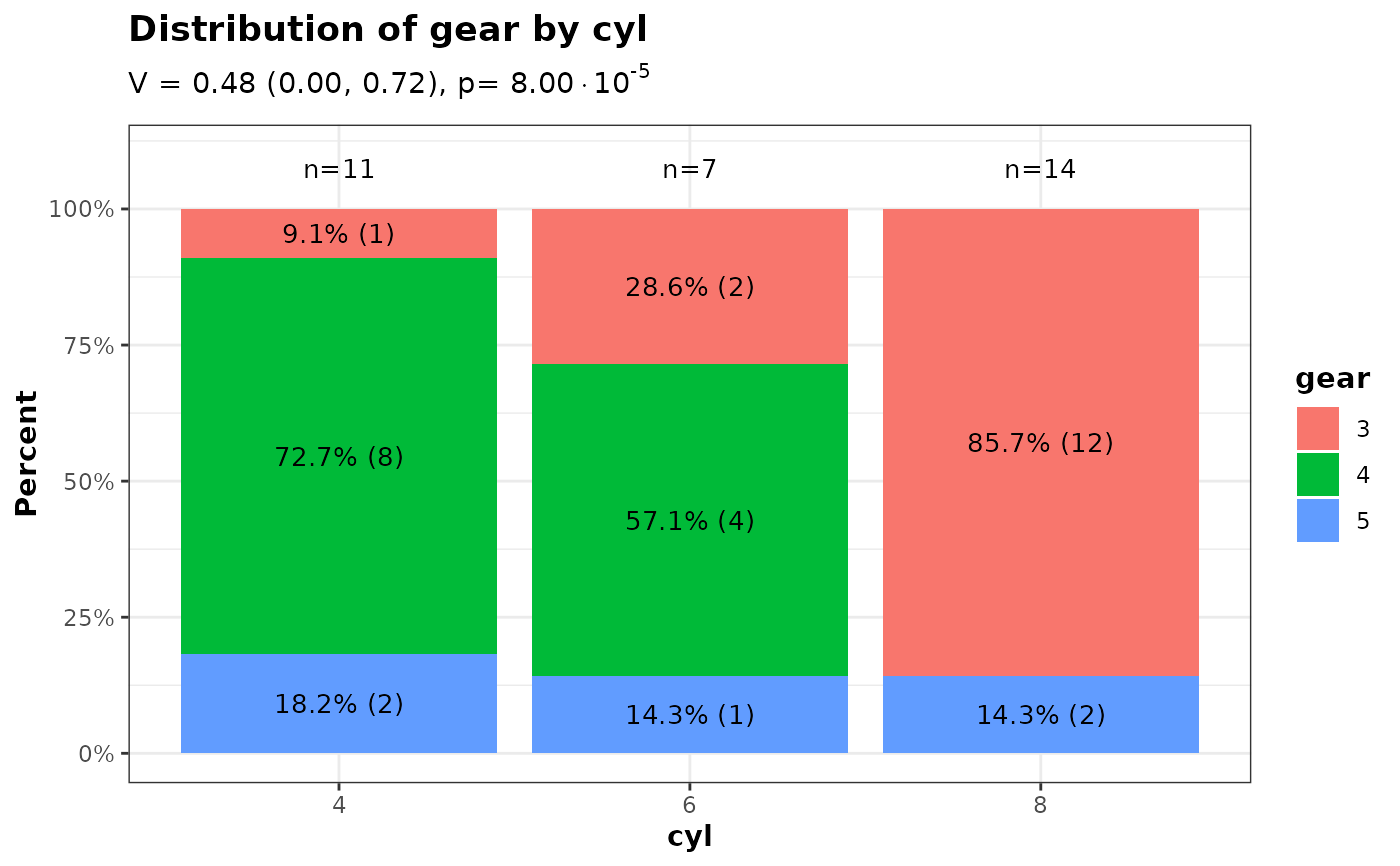

# Show both percent and count inside bars
p_pct_n <- plot_2_categorical_vars(
  d = mtcars,
  xvar = "cyl",
  yvar = "gear",
  inside_bar_stats = "pct_and_n",
  pct_digits = 1
)
p_pct_n$ggplot

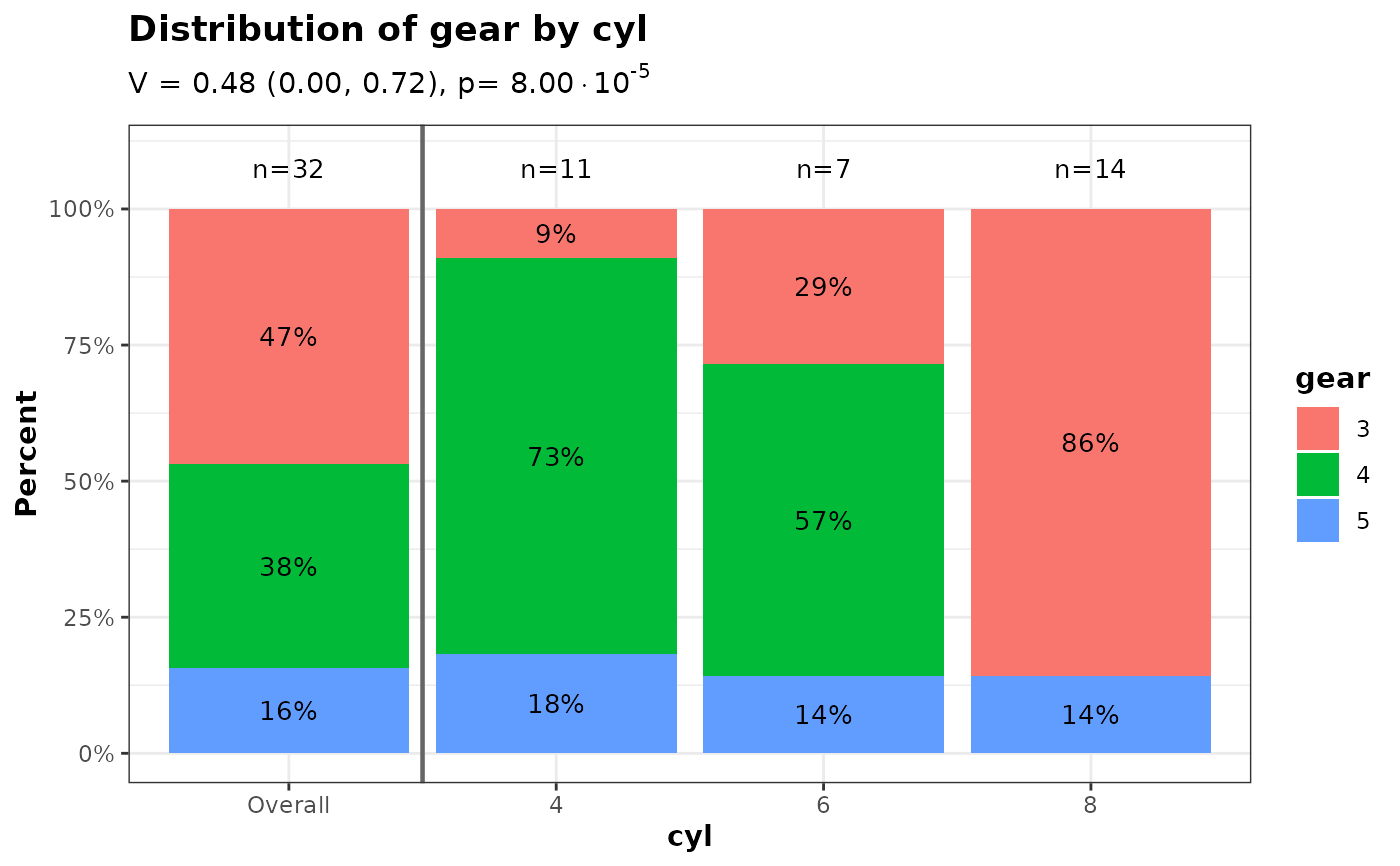

# Include a pooled 'Overall' bar on the left
p_overall <- plot_2_categorical_vars(
  d = mtcars,
  xvar = "cyl",
  yvar = "gear",
  include_overall_bar = TRUE
)
p_overall$ggplot

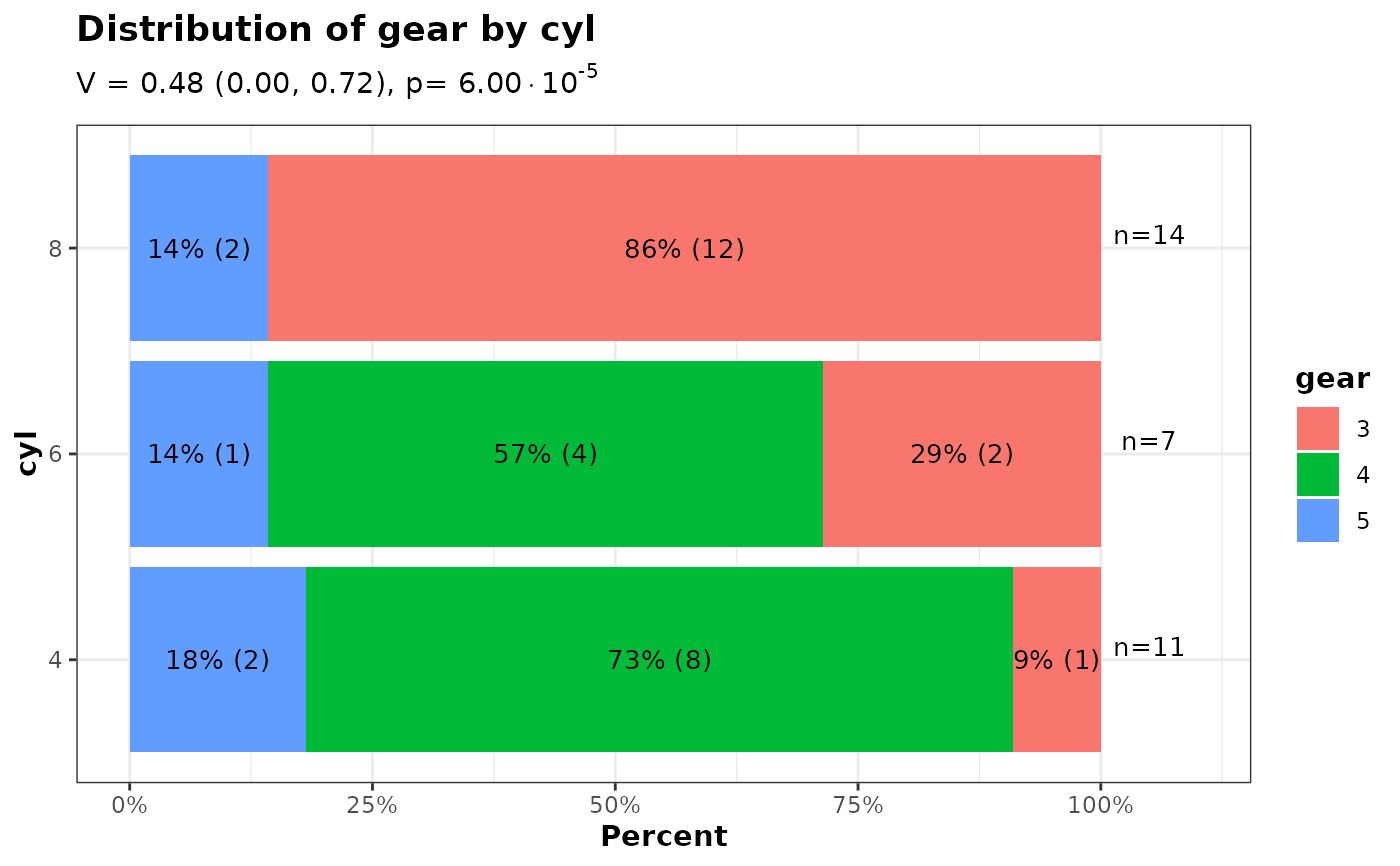

# Horizontal bars using `flip = TRUE`
p_horiz <- plot_2_categorical_vars(
  d = mtcars,
  xvar = "cyl",
  yvar = "gear",
  flip = TRUE,
  inside_bar_stats = "pct_and_n"
)
p_horiz$ggplot

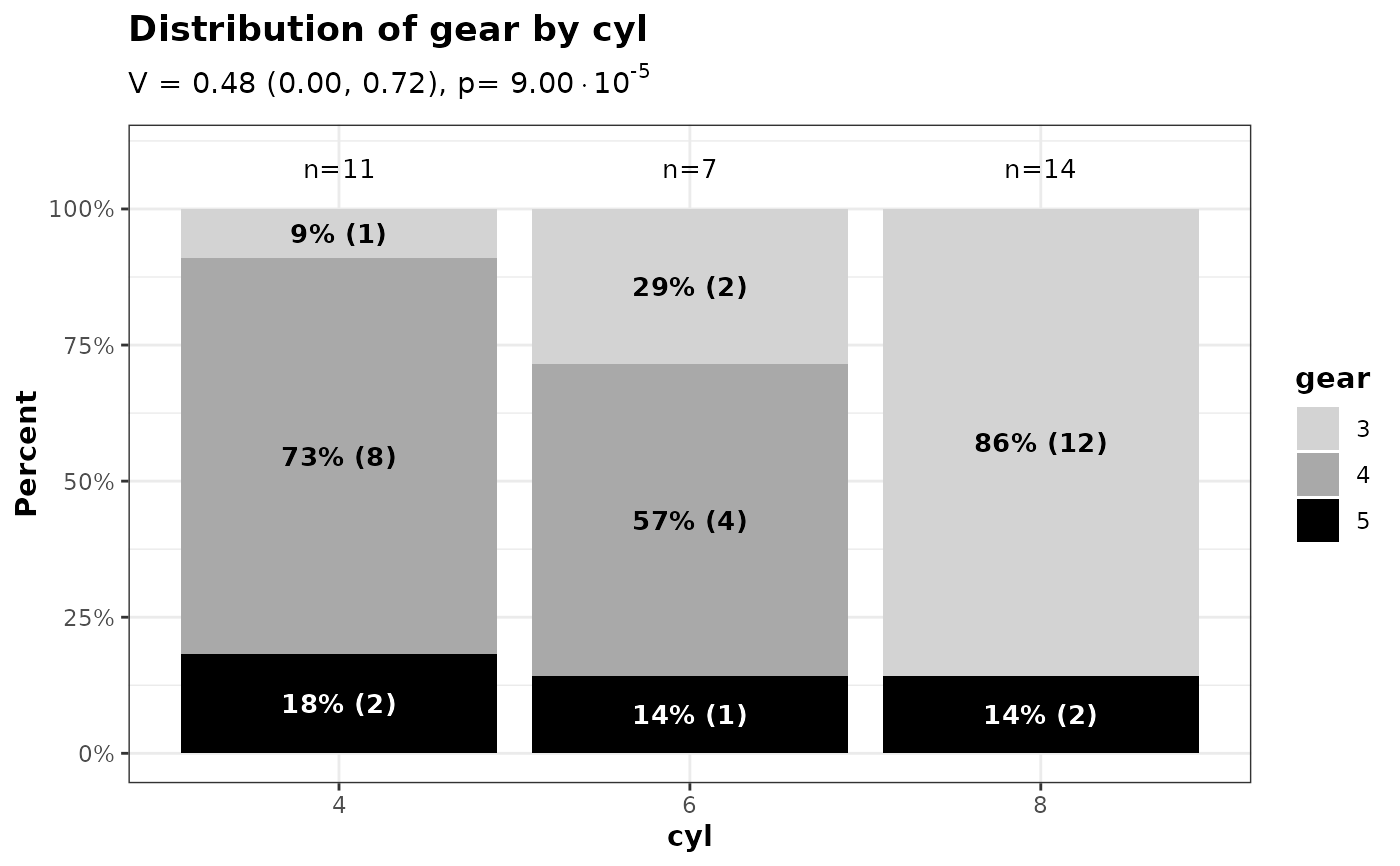

# Customize text colors by yvar level, and use bold text inside bars
p_text_colors <- plot_2_categorical_vars(
  d = mtcars,
  xvar = "cyl",
  yvar = "gear",
  yvar_colors = c("3" = "lightgrey", "4" = "darkgrey", "5" = "black"),
  yvar_text_colors = c("3" = "black", "4" = "black", "5" = "white"),
  inside_bar_stats = "pct_and_n",
  inside_bar_text_bold = TRUE
)
p_text_colors$ggplot

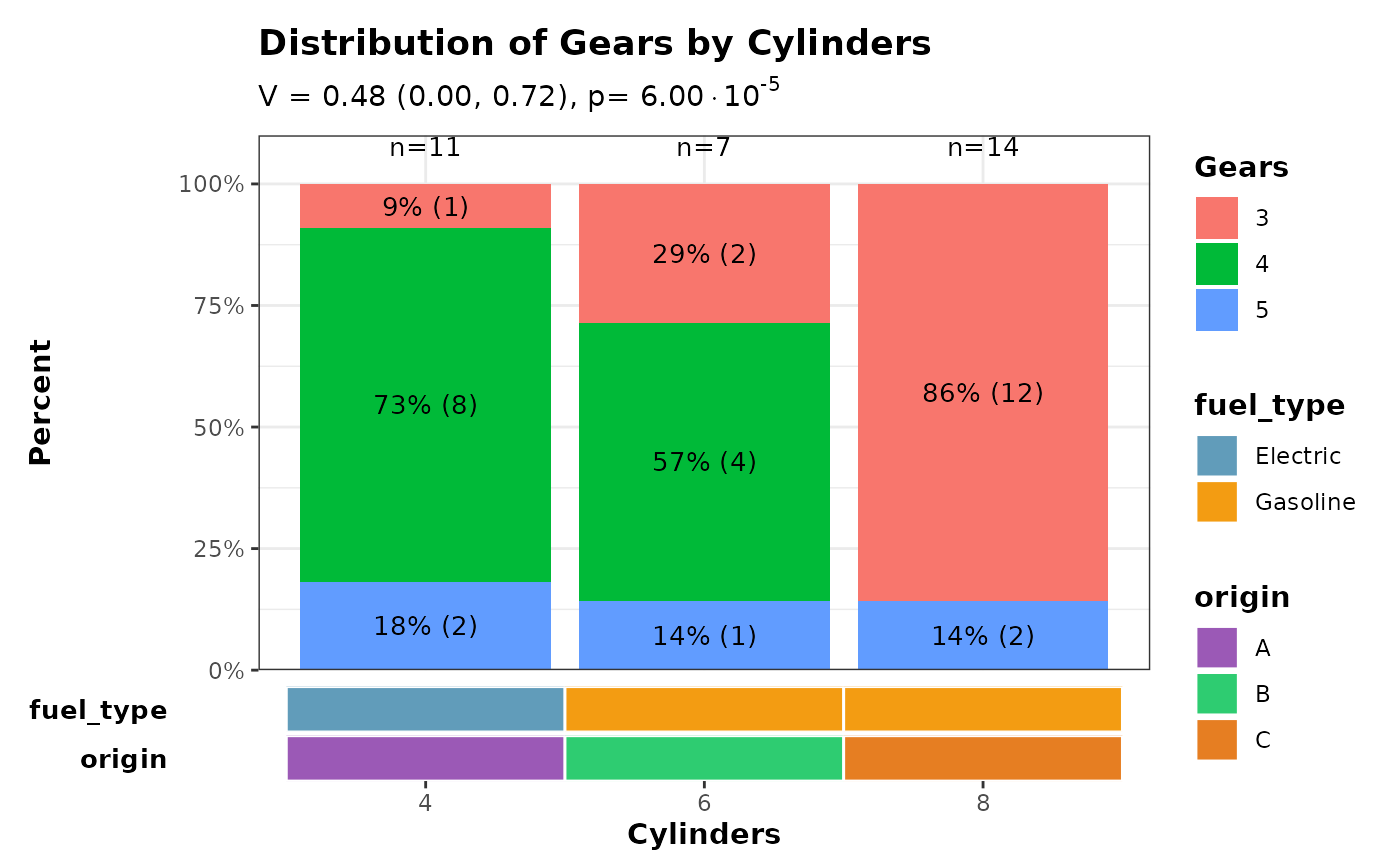

######### Combine stacked barchart with a horizontal covariate bar
# The covariate heatmap is designed for group-level annotations where each
# x-axis group has exactly one value per covariate (e.g. treatment arms with
# fixed properties). Here we use simulated group-level covariates.

# Create the main stacked barchart
p <- plot_2_categorical_vars(
  d = mtcars,
  xvar = "cyl",
  yvar = "gear",
  xvar_label = "Cylinders",
  yvar_label = "Gears",
  inside_bar_stats = "pct_and_n"
)

# Simulated group-level covariates: one row per cylinder group, in the same
# order as the barplot x-axis (i.e. factor level order).
cov_data <- data.frame(
  cyl       = factor(c("4",     "6",        "8")),
  fuel_type = factor(c("Electric", "Gasoline", "Gasoline")),
  origin    = factor(c("A", "B", "C"))
)

# Verify x-axis labels match before hiding the barplot x-axis.
# patchwork's axes = "collect_x" cannot reach into a nested patchwork,
# so we suppress the duplicate axis manually.
barplot_xlabels <- levels(mtcars[["cyl"]])
covbar_xlabels  <- as.character(cov_data[["cyl"]])
stopifnot(
  "x-axis labels of barplot and covariate bar must be identical" =
    identical(barplot_xlabels, covbar_xlabels)
)
p$ggplot <- p$ggplot +
  ggplot2::theme(
    axis.title.x = ggplot2::element_blank(),
    axis.text.x  = ggplot2::element_blank(),
    axis.ticks.x = ggplot2::element_blank()
  )

# Create horizontal covariate bar.
# Use collect_guides = FALSE so the outer wrap_plots() can collect all
# legends together; if collect_guides = TRUE (the default) the inner
# patchwork absorbs the guides before the outer composition sees them.
cov_bar <- plot_covariate_heatmap(
  dataset = cov_data,
  color_map = list(
    fuel_type = c("Electric" = "#619CBA", "Gasoline" = "#F39C12"),
    origin    = c("A" = "#9B59B6", "B" = "#2ECC71", "C" = "#E67E22")
  ),
  row_id_var = "cyl",
  show_column_names = TRUE,
  show_row_names = TRUE,
  horizontal = TRUE,
  collect_guides = FALSE,
  x_title = "Cylinders"
) &
  ggplot2::scale_x_discrete(expand = ggplot2::expansion(add = 0.6)) &
  ggplot2::theme(panel.border = ggplot2::element_blank())
#> Scale for x is already present.
#> Adding another scale for x, which will replace the existing scale.
#> Scale for x is already present.
#> Adding another scale for x, which will replace the existing scale.

# Combine plots vertically with collected legends
patchwork::wrap_plots(
  p$ggplot +
    ggplot2::scale_y_continuous(
      limits = c(0, 110),
      breaks = seq(0, 100, by = 25),
      labels = scales::label_number(suffix = "%"),
      expand = ggplot2::expansion(add = c(0, 0))
    ),
  cov_bar,
  ncol = 1,
  heights = c(0.85, 0.15),
  guides = "collect"
) & ggplot2::theme(legend.position = "right")
#> Scale for y is already present.
#> Adding another scale for y, which will replace the existing scale.
