Plot a covariate heatmap

Source: R/plot_covariate_heatmap.R
plot_covariate_heatmap.Rd

Displays one vertical strip per covariate using geom_tile, with all strips combined via wrap_plots. Because the output is a standard ggplot2/patchwork object it aligns naturally with other ggplots (e.g. when combined with | or / from patchwork). Only categorical (named-vector colors) covariates are supported.

Usage

plot_covariate_heatmap(
  dataset,
  color_map,
  row_id_var = NULL,
  show_row_names = TRUE,
  show_column_names = TRUE,
  row_names_side = "left",
  plot_spacing = 0.5,
  legend_side = "left",
  legend_title = NULL,
  column_labels_side = "bottom",
  horizontal = FALSE,
  merge_legends = FALSE,
  return_details = FALSE
)

Arguments

dataset

A data frame. Must contain all columns named in color_map and, if supplied, row_id_var.

color_map

A named list specifying which covariates to plot and their color mappings. Each name must be a column in dataset. Each element must be a named character vector mapping factor levels to hex colors. Any levels present in the data but absent from the vector receive auto-generated colors.

row_id_var

Character. Column in dataset used as row labels (y-axis). Default NULL uses 1:nrow(dataset).

show_row_names

Logical. Whether to display sample labels.

show_column_names

Logical. Whether to display covariate name labels (column labels). When horizontal = FALSE: labels appear as plot titles (column_labels_side = "top") or captions (column_labels_side = "bottom"). When horizontal = TRUE: the covariate name appears on the y-axis; column_labels_side controls left/right placement. Ignored when show_column_names = FALSE. Default TRUE.

row_names_side

"left" or "right". When horizontal = FALSE, row names are shown on the first strip ("left") or the last strip ("right"). Ignored when horizontal = TRUE; in that case, when show_row_names = TRUE, labels appear on the bottom (last) strip. Default "left".

plot_spacing

Numeric (mm). Gap between adjacent covariate strips. Default 0.5.

legend_side

Character. Position of the legends. One of "left", "right", "top", or "bottom". Default "left".

legend_title

NULL, a single character string, or a named character vector. When NULL (default) the legend title is the covariate name (or combined covariate names when merge_legends = TRUE). If a single string is supplied it is used for all legends. If a named vector is supplied, entries matching covariate names override titles for those covariates.

column_labels_side

Character. Where to show the covariate name labels. When horizontal = FALSE: "top" or "bottom" (default). When horizontal = TRUE: "left" (default) places the label on the left y-axis; "right" places it on the right y-axis by setting position = "right" on the continuous y scale.

horizontal

Logical. When TRUE the layout is transposed: samples appear on the x-axis and strips are stacked vertically so the plot can be combined below a main ggplot. Default FALSE.

merge_legends

Logical. When TRUE, strips sharing the exact same color mapping show a legend only on the first occurrence; that legend's title joins the covariate names with "\n". Default FALSE.

return_details

Logical. If TRUE, returns a named list with elements ht (the patchwork object) and final_colors (the resolved color map). Default FALSE.

Value

Invisibly returns a wrap_plots (patchwork) object, or a named list with elements ht and final_colors when return_details = TRUE.

Examples

data(ex_data_heatmap)

# Build a one-row-per-sample metadata frame
sample_meta <- ex_data_heatmap |>
  dplyr::select(sample, group, condition, sample_type) |>
  dplyr::distinct()

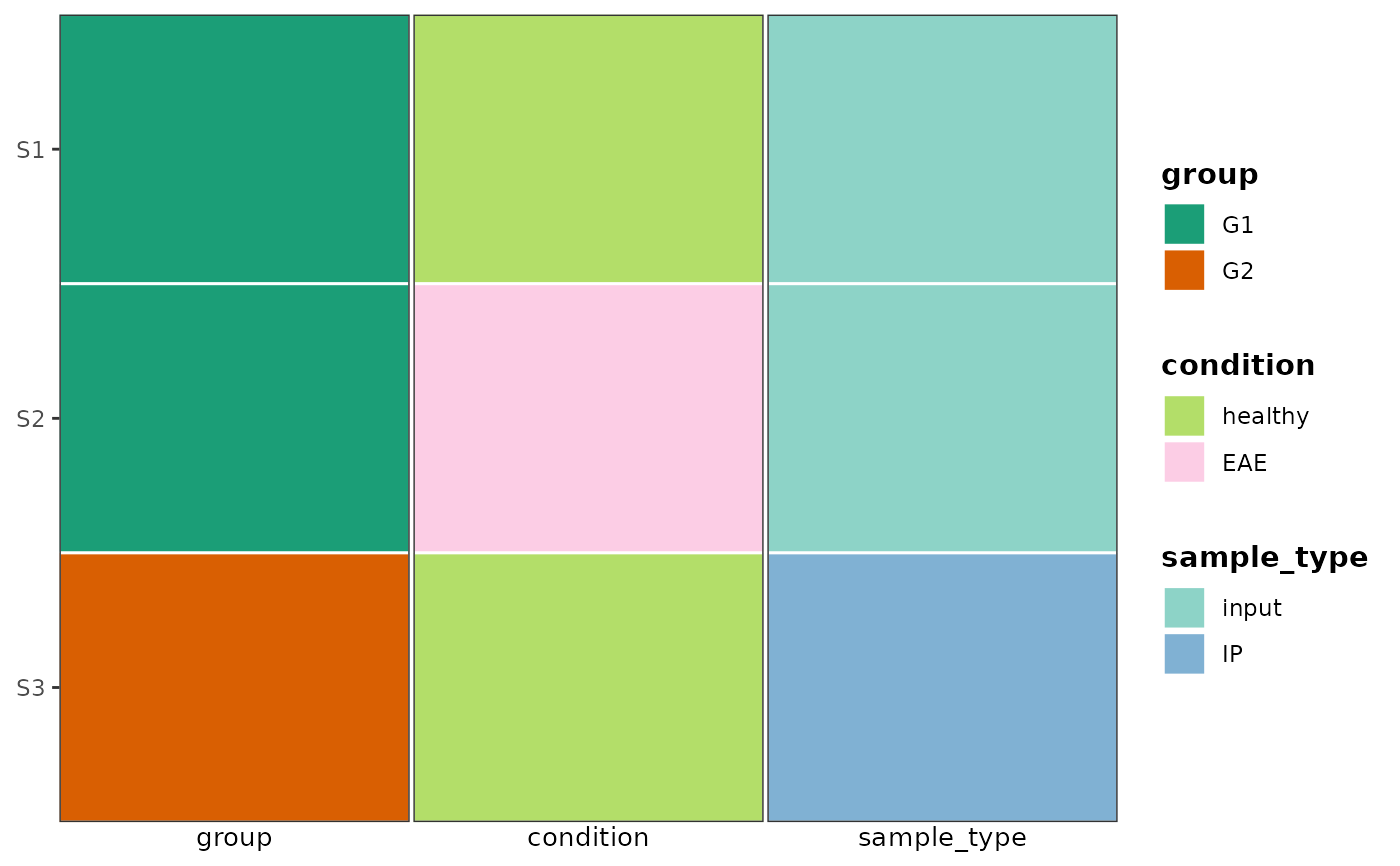

# Multiple categorical covariates
plot_covariate_heatmap(
  dataset = sample_meta,
  color_map = list(
    group       = c(G1 = "#1b9e77", G2 = "#d95f02"),
    condition   = c(healthy = "#b3de69", EAE = "#fccde5"),
    sample_type = c(input = "#8dd3c7", IP = "#80b1d3")
  ),
  row_id_var = "sample"
)

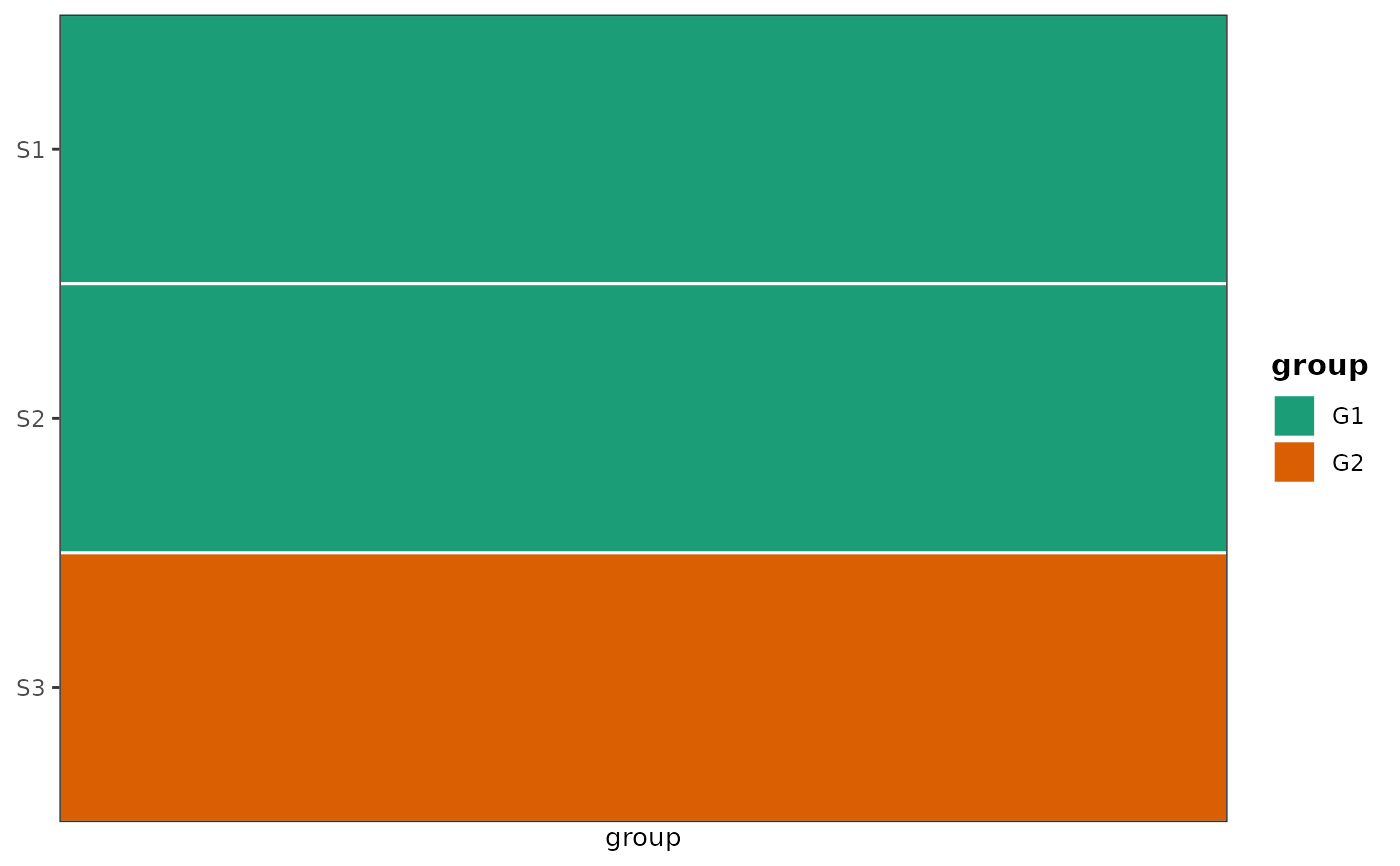

# Single vertical covariate bar - useful for placing to left/right of the main ggplot
plot_covariate_heatmap(
  dataset    = sample_meta,
  color_map  = list(group = c(G1 = "#1b9e77", G2 = "#d95f02")),
  row_id_var = "sample"
)

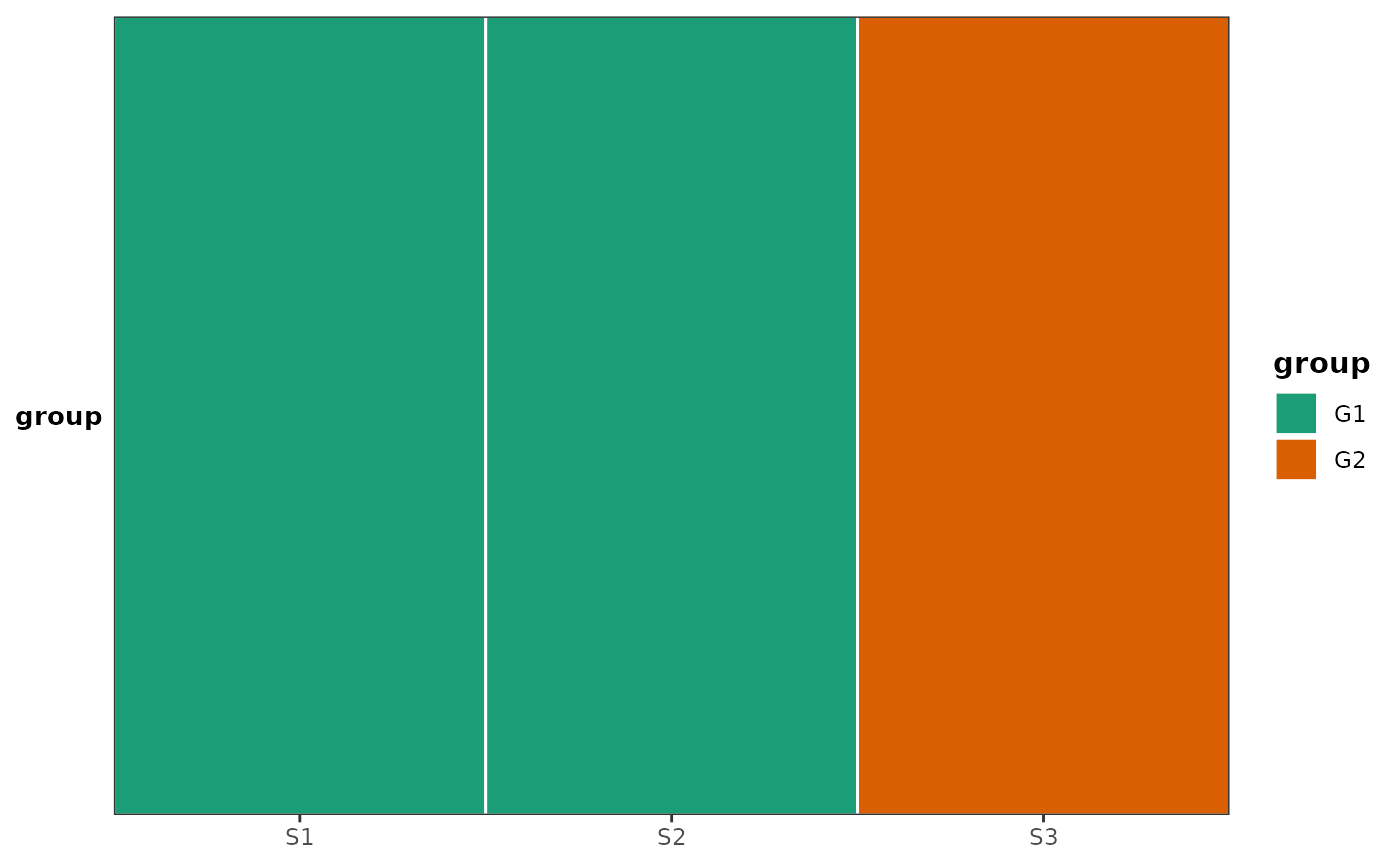

# Single horizontal covariate bar — useful for placing below a main ggplot
plot_covariate_heatmap(
  dataset    = sample_meta,
  color_map  = list(group = c(G1 = "#1b9e77", G2 = "#d95f02")),
  row_id_var = "sample",
  horizontal = TRUE
)

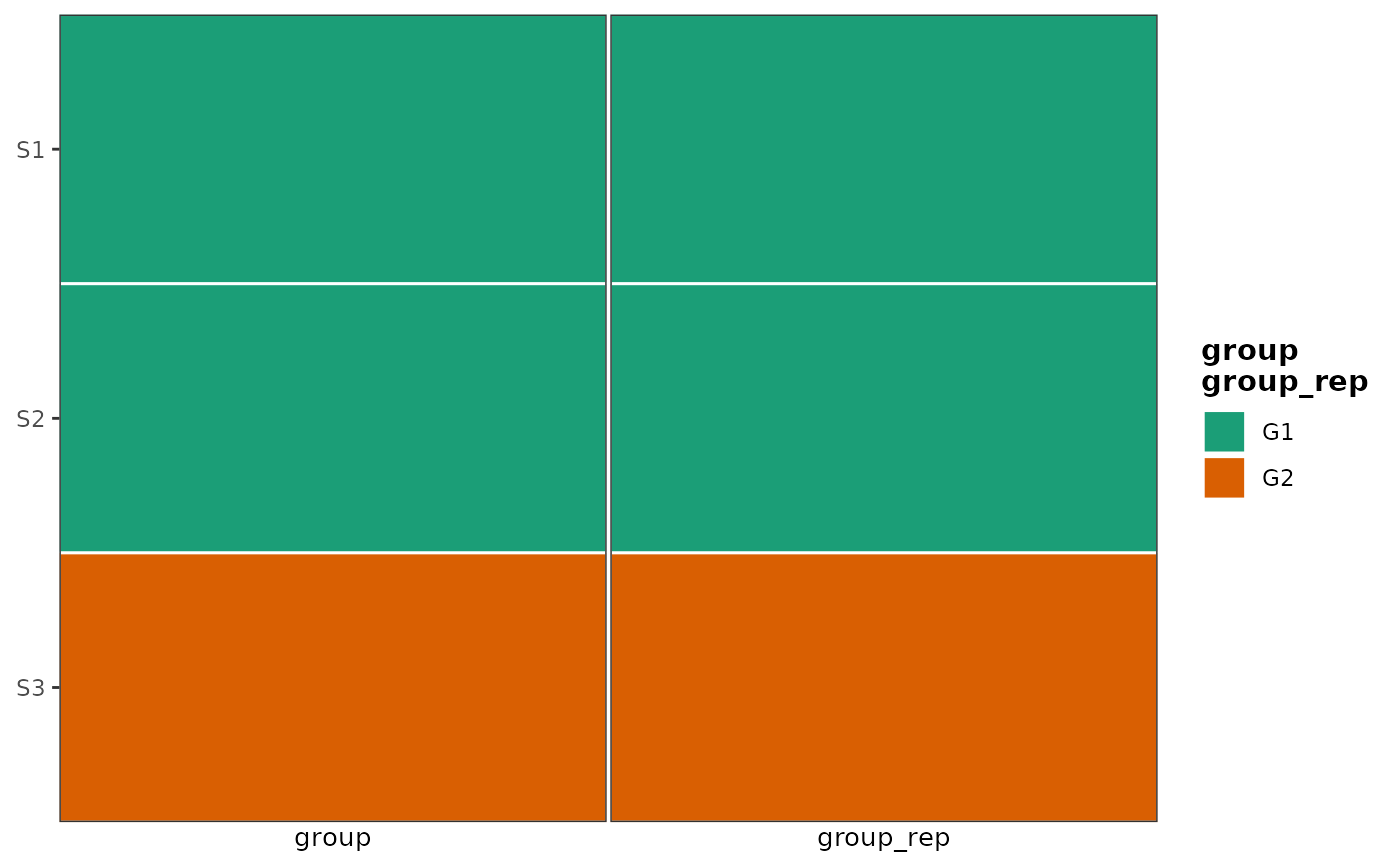

# merge_legends: two strips sharing the same color mapping → one legend
# whose title combines both covariate names.
grp_colors <- c(G1 = "#1b9e77", G2 = "#d95f02")
sample_meta2 <- dplyr::mutate(sample_meta, group_rep = group)
plot_covariate_heatmap(
  dataset = sample_meta2,
  color_map = list(
    group     = grp_colors,
    group_rep = grp_colors
  ),
  row_id_var    = "sample",
  merge_legends = TRUE
)
