Dot-and-whisker plot of estimates with confidence intervals

Create a horizontal dot-and-whisker plot showing point estimates and confidence intervals for labeled rows. Optionally offset points and use different shapes or colors when a grouping column is supplied. Optionally append a p-value barplot to the right via patchwork.

Usage

plot_dot_whiskers(
  data,
  group_col = NULL,
  x = "est",
  xmin = "conf.low",
  xmax = "conf.high",
  label_col = "cell_line",
  dodge_width = 0.3,
  style = c("color", "shape"),
  sep_linetype = "solid",
  sep_linewidth = 0.4,
  sep_color = "black",
  vline_xintercept = 0,
  vline_linetype = "dashed",
  vline_color = "black",
  point_shapes = c(21, 24, 22, 25, 23),
  pvalue_col = NULL,
  pvalue_plot_width = 0.3,
  pvalue_plot_margin = c(5.5, 12, 5.5, 0),
  ...
)

Arguments

data: A data.frame or tibble containing the columns referenced by x, xmin, xmax, and label_col.
group_col: Optional string name of a factor grouping column. When provided, points are offset by group for visibility. Factor levels control the ordering and direction of the dodge offset: the first level is plotted at the top of each row.
x: String name of the estimate column. Default "est".
xmin: String name of the lower-interval column. Default "conf.low".
xmax: String name of the upper-interval column. Default "conf.high".
label_col: String name of the label/row identifier column. Must be a factor; factor levels control the top-to-bottom row ordering (first level appears at the top). Default "cell_line".
dodge_width: Numeric. Total vertical spread across groups. Default 0.3.
style: String. Controls group encoding when group_col is supplied. "color" (default) uses different colors per group and draws horizontal separator lines between rows. "shape" uses the same color per label_col row and different point shapes per group.
sep_linetype: Line type for row separator lines when style = "color". Default "solid".
sep_linewidth: Line width for row separator lines when style = "color". Default 0.4.
sep_color: Color for row separator lines when style = "color". Default "black".
vline_xintercept: Numeric. Position of the vertical reference line. Default 0.
vline_linetype: Line type for the vertical reference line. Default "dashed".
vline_color: Color for the vertical reference line. Default "black".
point_shapes: Integer vector of point shapes to use when style = "shape". Must have at least as many elements as there are levels in group_col. Defaults to c(21, 24, 22, 25, 23) (up to 5 groups). See graphics::points() for shape codes.
pvalue_col: Optional string name of a column in data containing one p-value per label_col row. When supplied, a plot_pvalue_barplot() is appended to the right using patchwork. The p-value used for each row is taken from the first occurrence within that label_col group, so the column must be constant within each row. Requires the patchwork package.
pvalue_plot_width: Relative width of the p-value panel passed to patchwork::wrap_plots() widths. Default 0.3.
pvalue_plot_margin: Numeric vector of length 4 giving the p-value panel plot margin in points: c(top, right, bottom, left). Default c(5.5, 12, 5.5, 0) which increases right margin so x-axis labels are not clipped when the panel is appended to the right.
...: Additional arguments passed to plot_pvalue_barplot() when pvalue_col is supplied.

Value

A ggplot2 object, or a patchwork object when pvalue_col is supplied.

Examples

df <- data.frame(
  cell_line = factor(c("A", "A", "B", "B", "C", "C"), levels = c('A', 'B', 'C')),
  est       = c(0.2, 0.35, -0.1, 0.05, 0.5, 0.3),
  conf.low  = c(0.0, 0.10, -0.3, -0.10, 0.2, 0.1),
  conf.high = c(0.4, 0.60,  0.1,  0.20, 0.8, 0.5),
  group     = factor(c("g1", "g2", "g1", "g2", "g1", "g2"), levels = c("g1", "g2")),
  pvalue    = c(0.01, 0.01, 0.4, 0.4, 0.001, 0.001)
)

# color style: groups distinguished by color, separator lines between rows

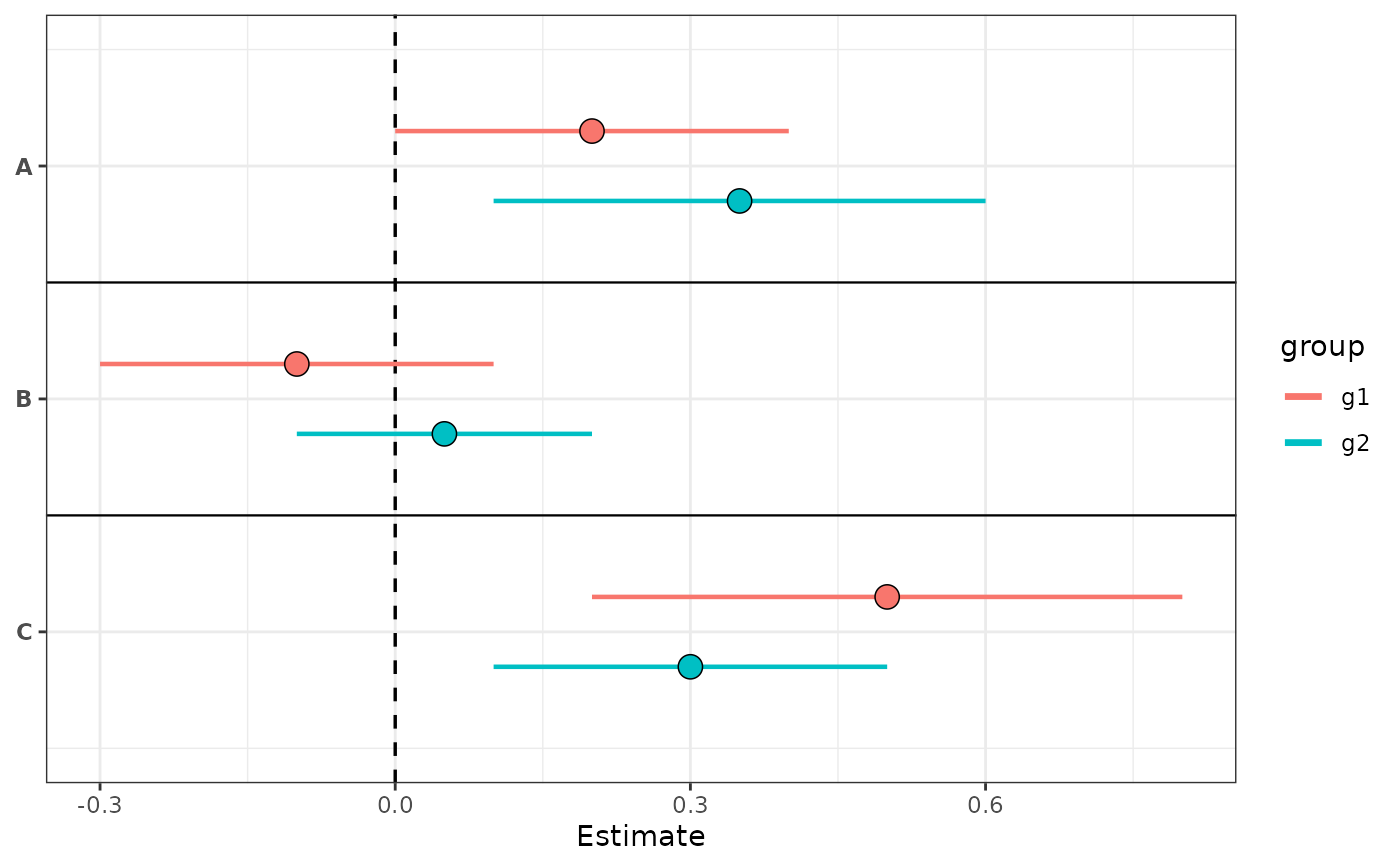

plot_dot_whiskers(df, group_col = "group", style = "color")


# shape style: groups distinguished by point shape, rows colored by label

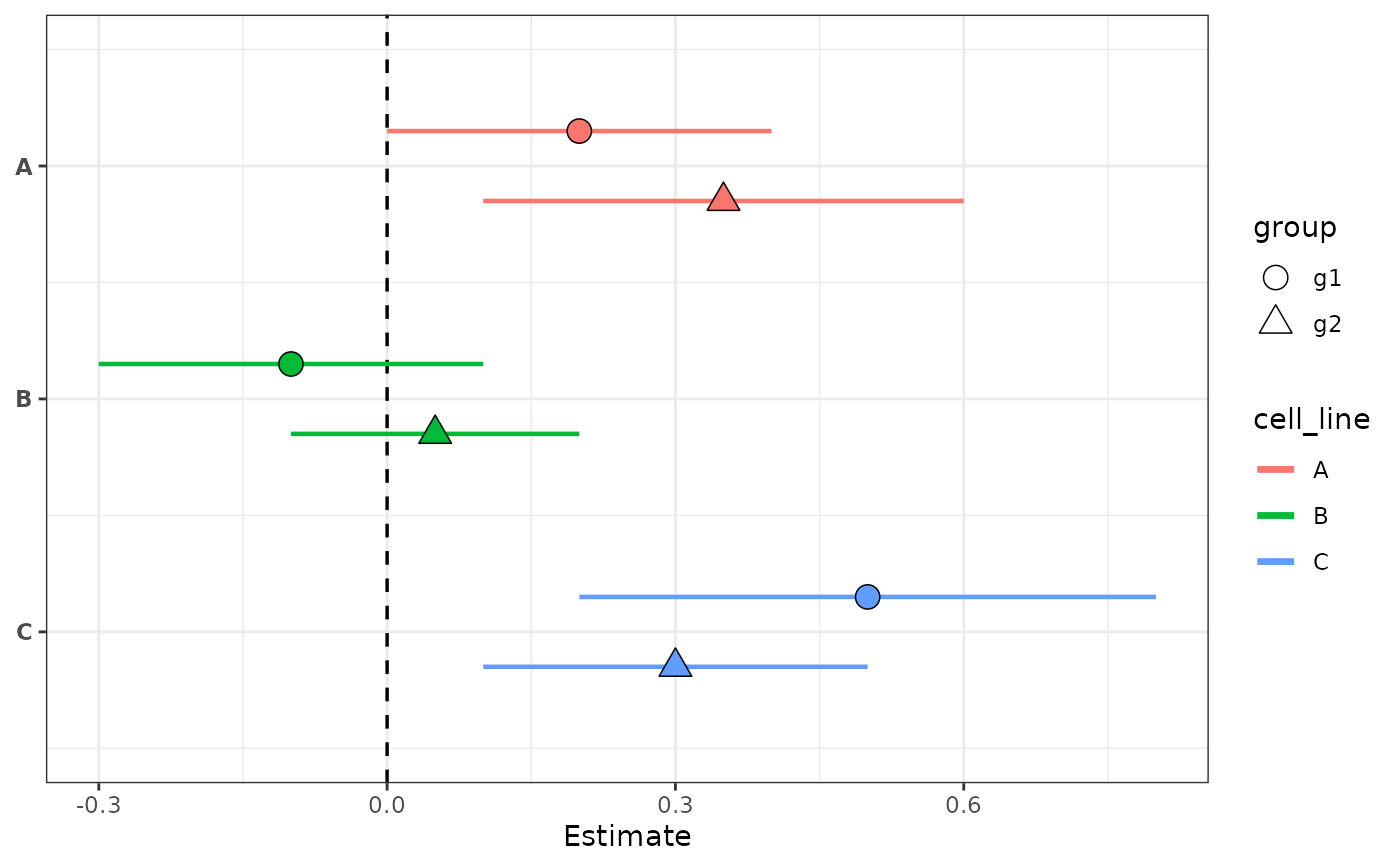

plot_dot_whiskers(df, group_col = "group", style = "shape")

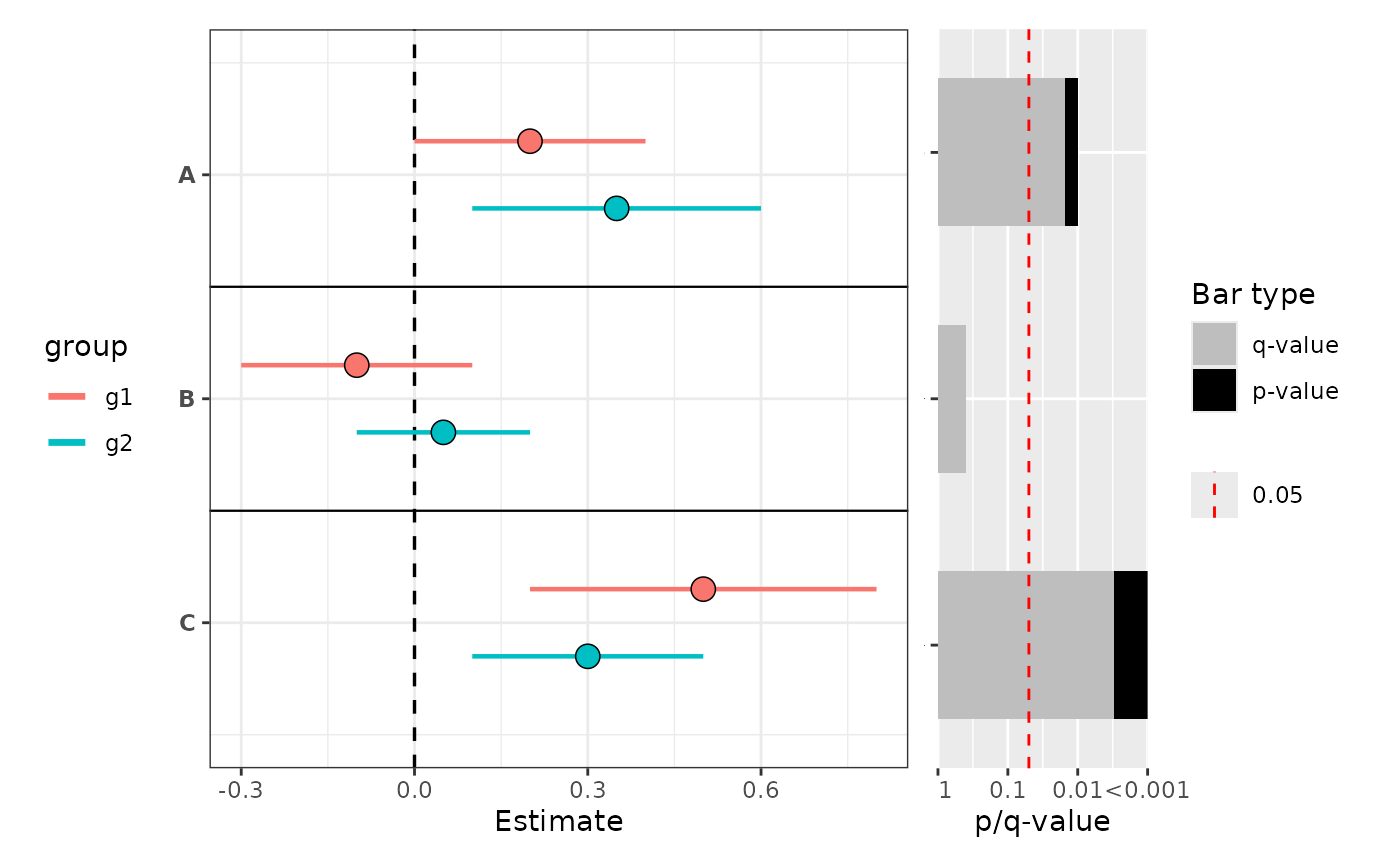

# with p-value barplot appended on the right
plot_dot_whiskers(
  df,
  group_col  = "group",
  style      = "color",
  pvalue_col = "pvalue",
  mlog10_transform_pvalue = TRUE
)
#> Scale for y is already present.
#> Adding another scale for y, which will replace the existing scale.

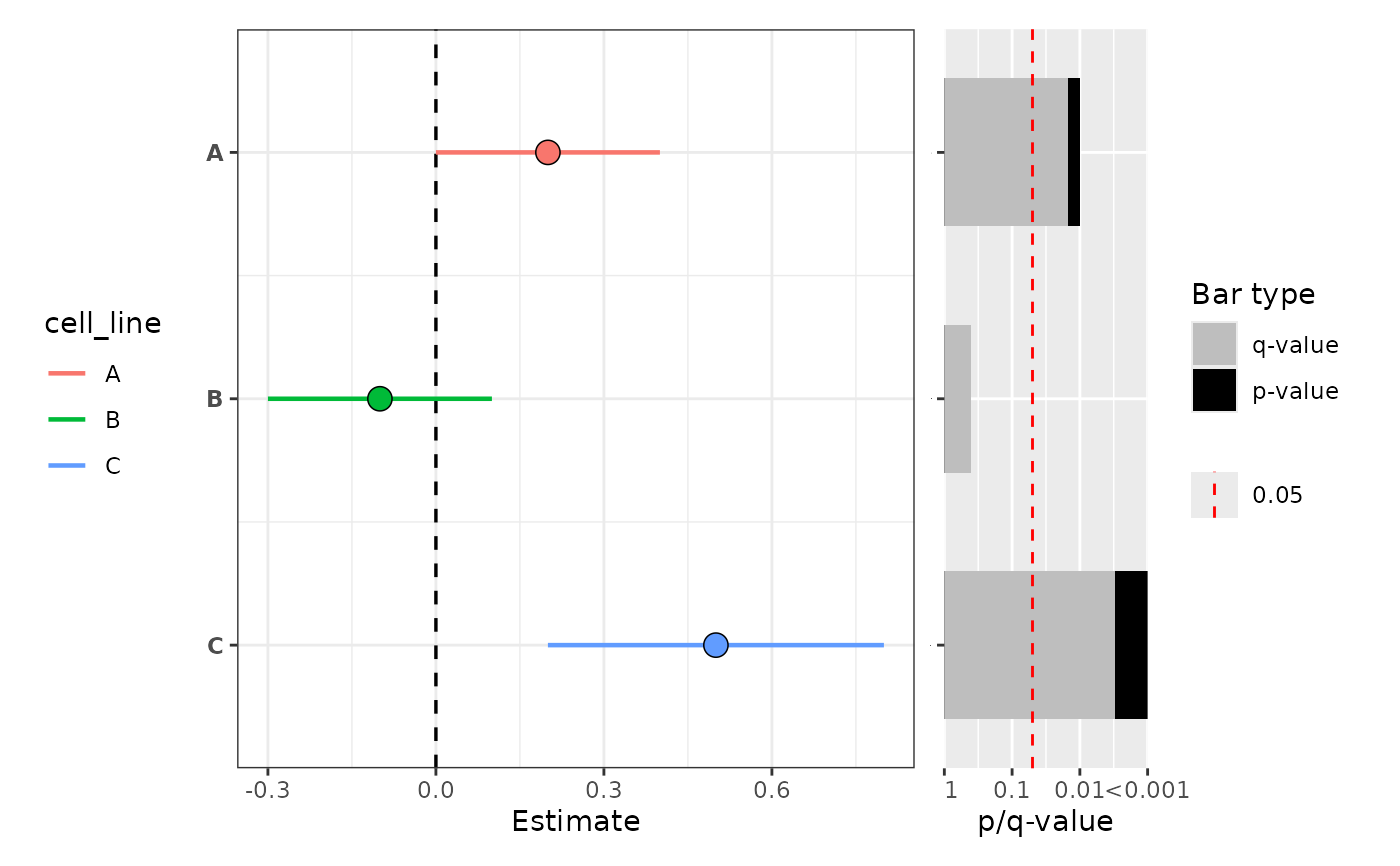

# no grouping, with p-value barplot appended on the right
df_single <- data.frame(
  cell_line = factor(c("A", "B", "C"), levels = c("A", "B", "C")),
  est       = c(0.2, -0.1, 0.5),
  conf.low  = c(0.0, -0.3, 0.2),
  conf.high = c(0.4,  0.1, 0.8),
  pvalue    = c(0.01, 0.4, 0.001)
)

plot_dot_whiskers(
  df_single,
  pvalue_col = "pvalue",
  mlog10_transform_pvalue = TRUE
)
#> Scale for y is already present.
#> Adding another scale for y, which will replace the existing scale.
