Dot-and-whisker plot of estimates with confidence intervals

Source: R/plot_confidence_intervals.R
plot_confidence_intervals.Rd

Create a horizontal dot-and-whisker plot showing point estimates and confidence intervals for labeled rows. Optionally offset points and use different shapes or colors when a grouping column is supplied. Optionally append a p-value barplot to the right via patchwork.

Usage

plot_confidence_intervals(
  data,
  effect_size,
  ci_low,
  ci_high,
  id,
  group_col = NULL,
  dodge_width = 0.3,
  color_col = NULL,
  color_values = NULL,
  show_separators = TRUE,
  shape_col = NULL,
  sep_linetype = "solid",
  sep_linewidth = 0.4,
  sep_color = "black",
  vline_xintercept = 0,
  vline_linetype = "dashed",
  vline_color = "black",
  point_shapes = c(21, 24, 22, 25, 23),
  pvalue_col = NULL,
  combine_pvalue_method = c("fisher", "CMC", "MCM", "cauchy", "minp_bonferroni"),
  pvalue_plot_width = 0.3,
  pvalue_plot_margin = c(5.5, 12, 5.5, 0),
  ...
)

Arguments

data

A data.frame or tibble containing the columns referenced by effect_size, ci_low, ci_high, and id.

effect_size

String name of the effect size/estimate column.

ci_low

String name of the lower confidence interval column.

ci_high

String name of the upper confidence interval column.

id

String name of the label/row identifier column. Must be a factor; factor levels control the top-to-bottom row ordering (first level appears at the top).

group_col

Optional string name of a factor grouping column. When provided, points are offset by group for visibility. Factor levels control the ordering and direction of the dodge offset: the first level is plotted at the top of each row.

dodge_width

Numeric. Total vertical spread across groups. Default 0.3.

color_col

Optional string name of a column to use for coloring segments and points. When NULL (default), no colors are applied. Common choices are group_col to distinguish groups or id to color by row. Must be a factor or character column.

color_values

Optional named character vector specifying custom colors for the levels in color_col. Names should match the factor levels and values should be valid R color names or hex codes (e.g., c(g1 = "#FF0000", g2 = "#0000FF")). If NULL (default), ggplot2's default color scale is used. Ignored if color_col is NULL.

show_separators

Logical. Whether to draw horizontal separator lines between rows when group_col is supplied. Default TRUE.

shape_col

Optional string name of a column to use for point shapes. When NULL (default), no shape encoding is applied. Can be a factor or character column; character columns are coerced to factor with sorted level ordering for stable shape assignment. Can be used independently or in combination with color_col.

sep_linetype

Line type for row separator lines. Default "solid".

sep_linewidth

Line width for row separator lines. Default 0.4.

sep_color

Color for row separator lines. Default "black".

vline_xintercept

Numeric. Position of the vertical reference line. Default 0.

vline_linetype

Line type for the vertical reference line. Default "dashed".

vline_color

Color for the vertical reference line. Default "black".

point_shapes

Integer vector of point shapes to use when shape_col is specified. Must have at least as many elements as there are levels in shape_col. Defaults to c(21, 24, 22, 25, 23) (up to 5 groups). See graphics::points() for shape codes.

pvalue_col

Optional string name of a column in data containing p-values (one per row). When supplied, a plot_pvalue_barplot() is appended to the right using patchwork. When group_col is specified, p-values are combined across groups for each id level using the method specified by combine_pvalue_method. When group_col is NULL, individual p-values are displayed directly. Requires the patchwork package.

combine_pvalue_method

Character; method for combining p-values when group_col is supplied. One of: "fisher" (default), "CMC", "MCM", "cauchy", "minp_bonferroni". See combine_pvalues() for details. Ignored if group_col is NULL.

pvalue_plot_width

Relative width of the p-value panel passed to patchwork::wrap_plots() widths. Default 0.3.

pvalue_plot_margin

Numeric vector of length 4 giving the p-value panel plot margin in points: c(top, right, bottom, left). Default c(5.5, 12, 5.5, 0) which increases right margin so x-axis labels are not clipped when the panel is appended to the right.

...

Additional arguments passed to plot_pvalue_barplot() when pvalue_col is supplied. The fill parameter can be used to color the p-value bars. When group_col is specified, fill must be NULL or equal to the id column name (since p-values are combined across groups).

Value

A ggplot2 object, or a patchwork object when pvalue_col is supplied.

Examples

ggplot2::theme_set(theme_bw2())
df <- data.frame(
  cell_line = factor(c("A", "B", "C", "A", "B", "C"), levels = c('A', 'B', 'C')),
  est       = c(0.2, -0.1, 0.5, 0.35, 0.05, 0.3),
  conf.low  = c(0.0, -0.3, 0.2, 0.10, -0.10, 0.1),
  conf.high = c(0.4, 0.1, 0.8, 0.60, 0.20, 0.5),
  group     = factor(c("g1", "g1", "g1", "g2", "g2", "g2"), levels = c("g1", "g2")),
  pvalue    = c(0.01, 0.4, 0.001, 0.02, 0.3, 0.0001)
)

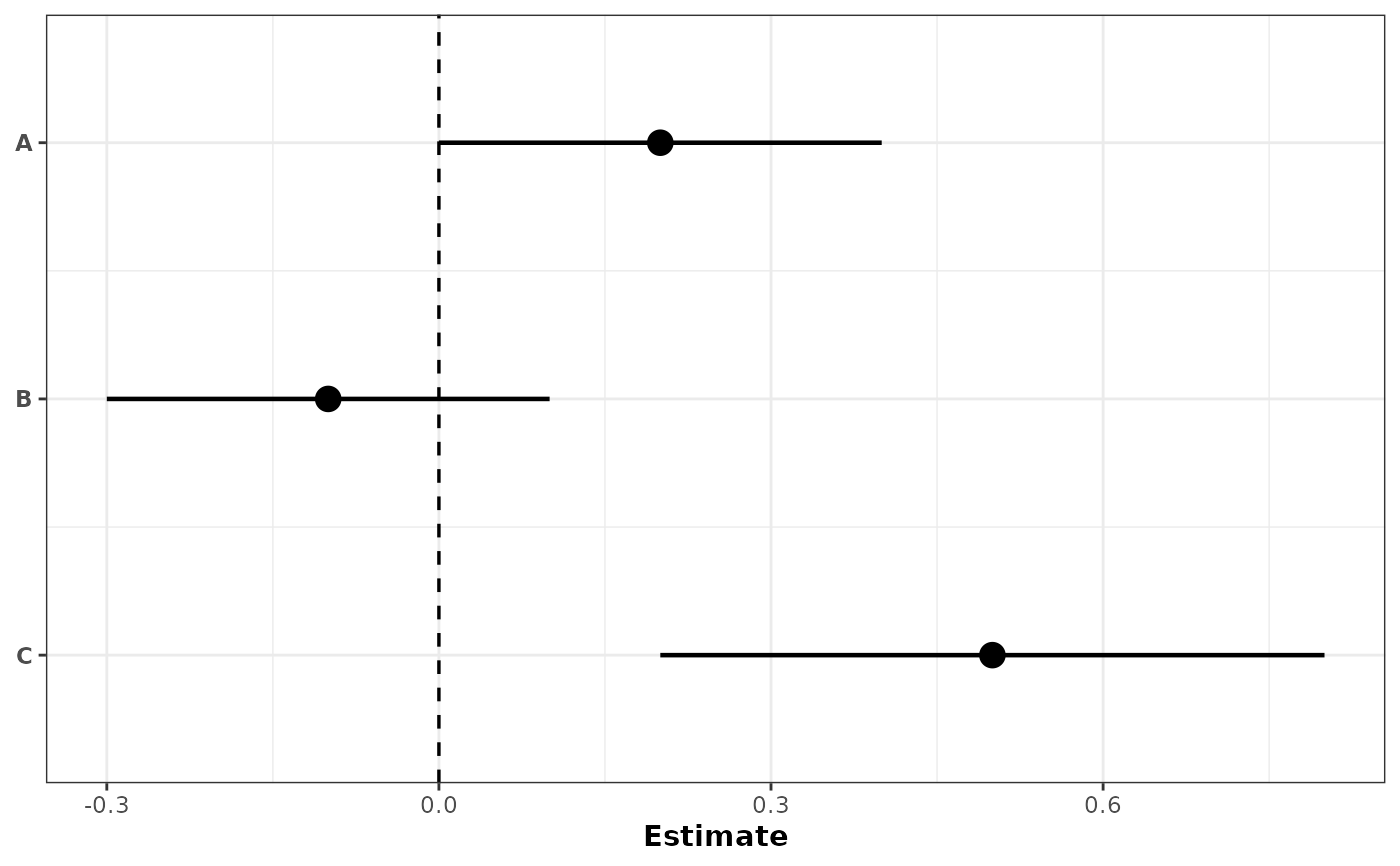

# Simplest: no grouping, no color
plot_confidence_intervals(
  df[1:3, ],
  effect_size = "est",
  ci_low = "conf.low",
  ci_high = "conf.high",
  id = "cell_line"
)


# With grouping: separate rows with color by default
plot_confidence_intervals(
  df,
  effect_size = "est",
  ci_low = "conf.low",
  ci_high = "conf.high",
  id = "cell_line",
  group_col = "group",
  color_col = "group"
)

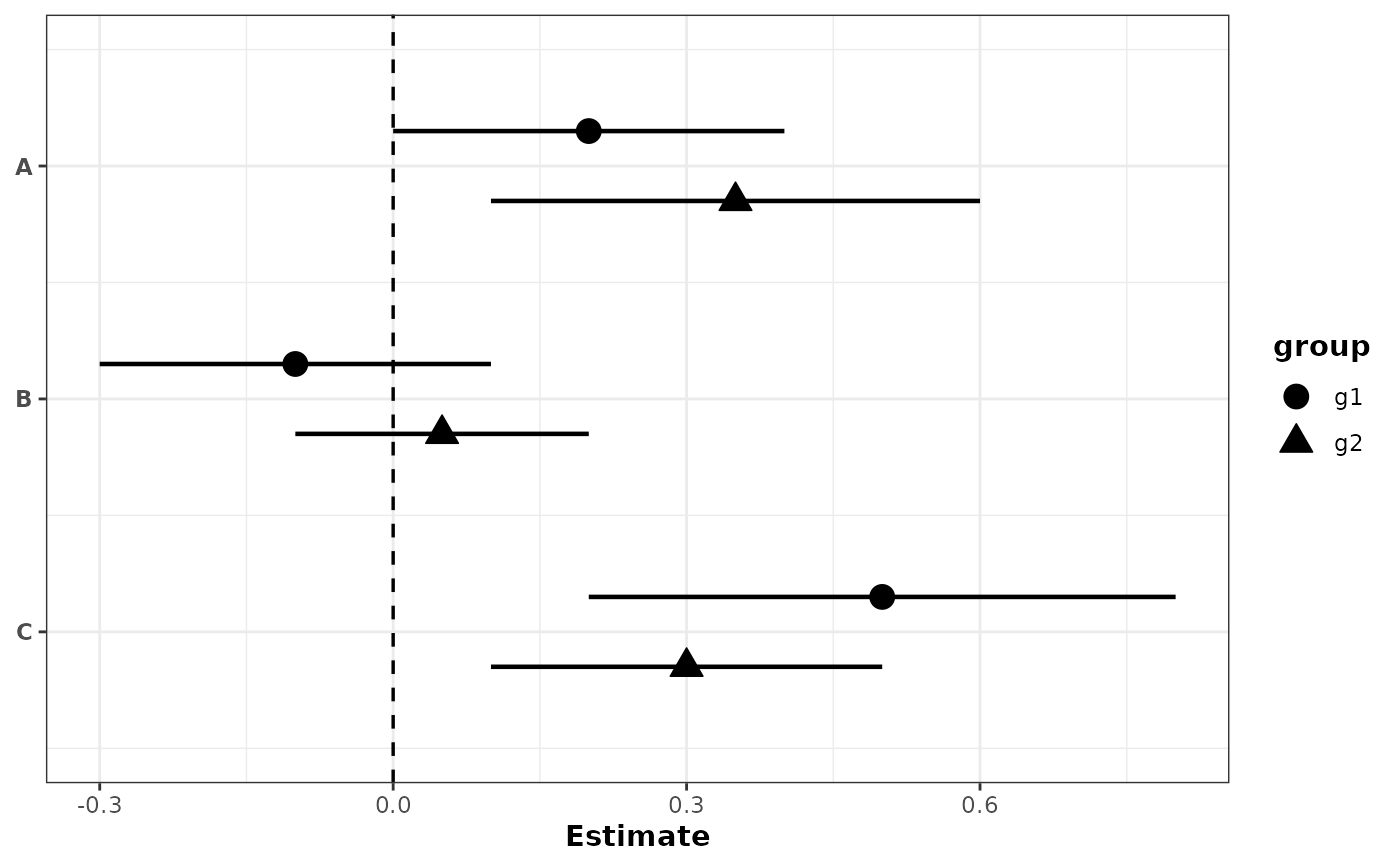

# With grouping: different shapes for groups
plot_confidence_intervals(
  df,
  effect_size = "est",
  ci_low = "conf.low",
  ci_high = "conf.high",
  id = "cell_line",
  group_col = "group",
  shape_col = "group",
  show_separators = FALSE
)

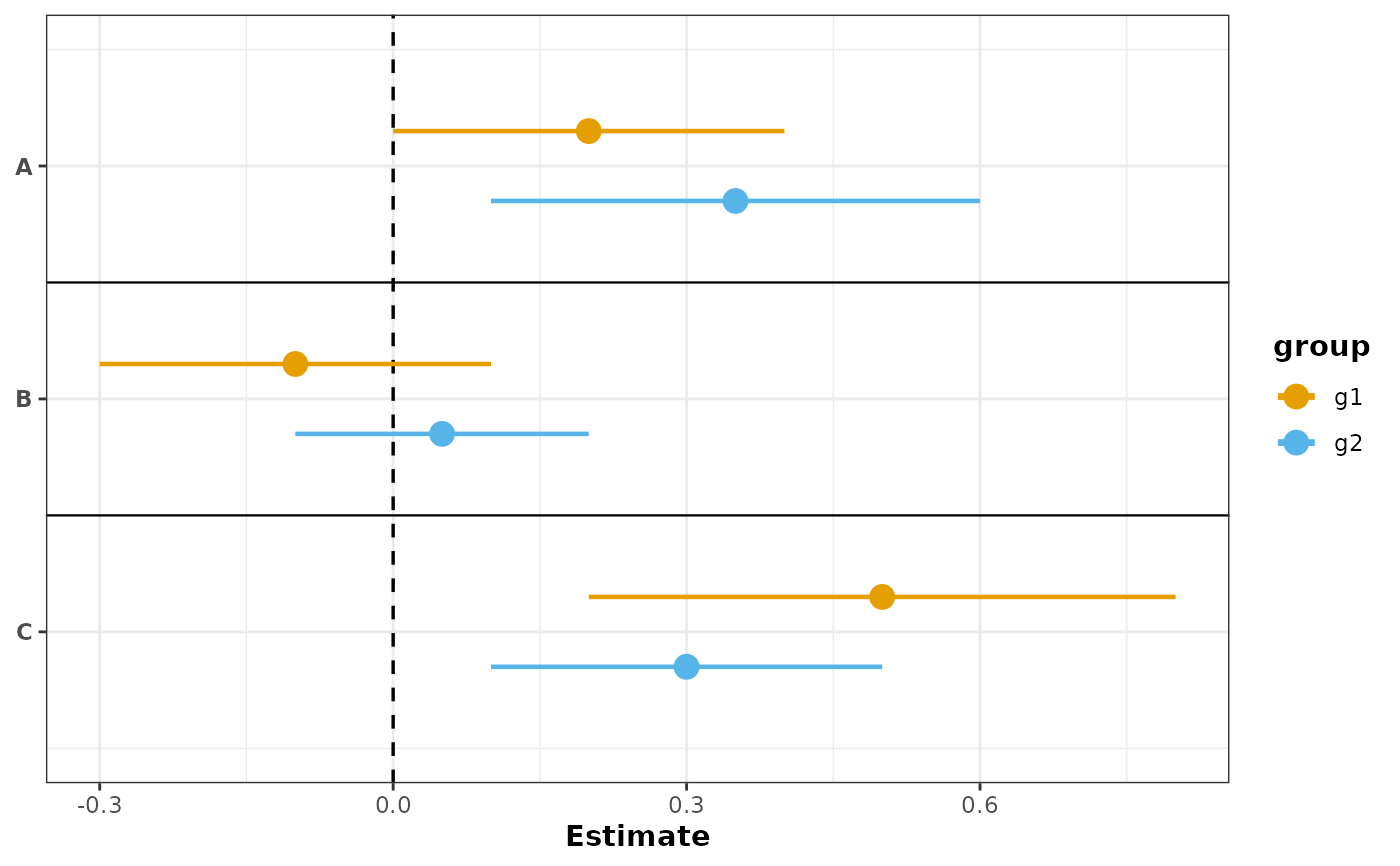

# With grouping: color by group with custom colors
plot_confidence_intervals(
  df,
  effect_size = "est",
  ci_low = "conf.low",
  ci_high = "conf.high",
  id = "cell_line",
  group_col = "group",
  color_col = "group",
  color_values = c(g1 = "#E69F00", g2 = "#56B4E9")
)
#> Scale for colour is already present.
#> Adding another scale for colour, which will replace the existing scale.

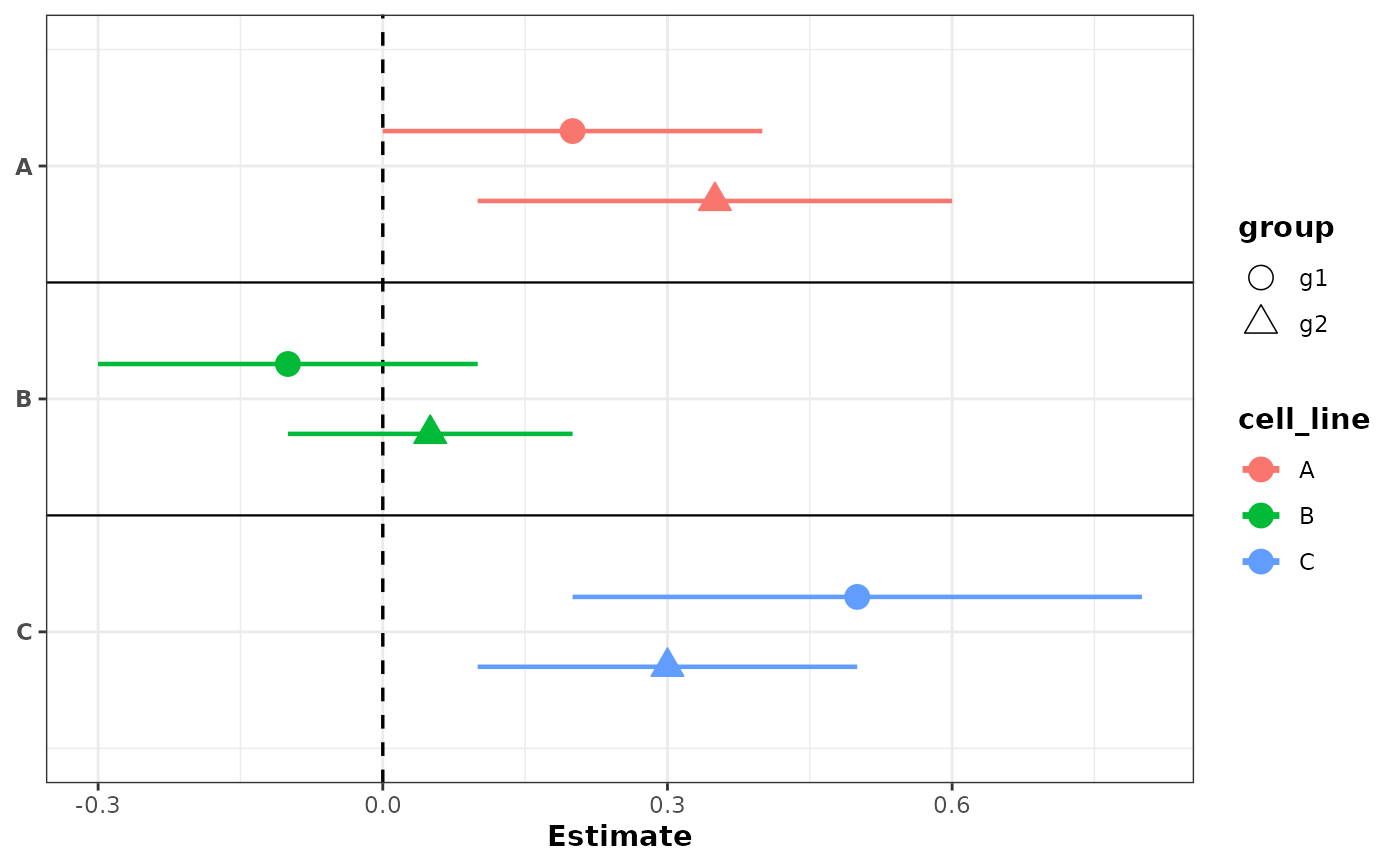

# Color by label, shapes by group
plot_confidence_intervals(
  df,
  effect_size = "est",
  ci_low = "conf.low",
  ci_high = "conf.high",
  id = "cell_line",
  group_col = "group",
  shape_col = "group",
  color_col = "cell_line"
)

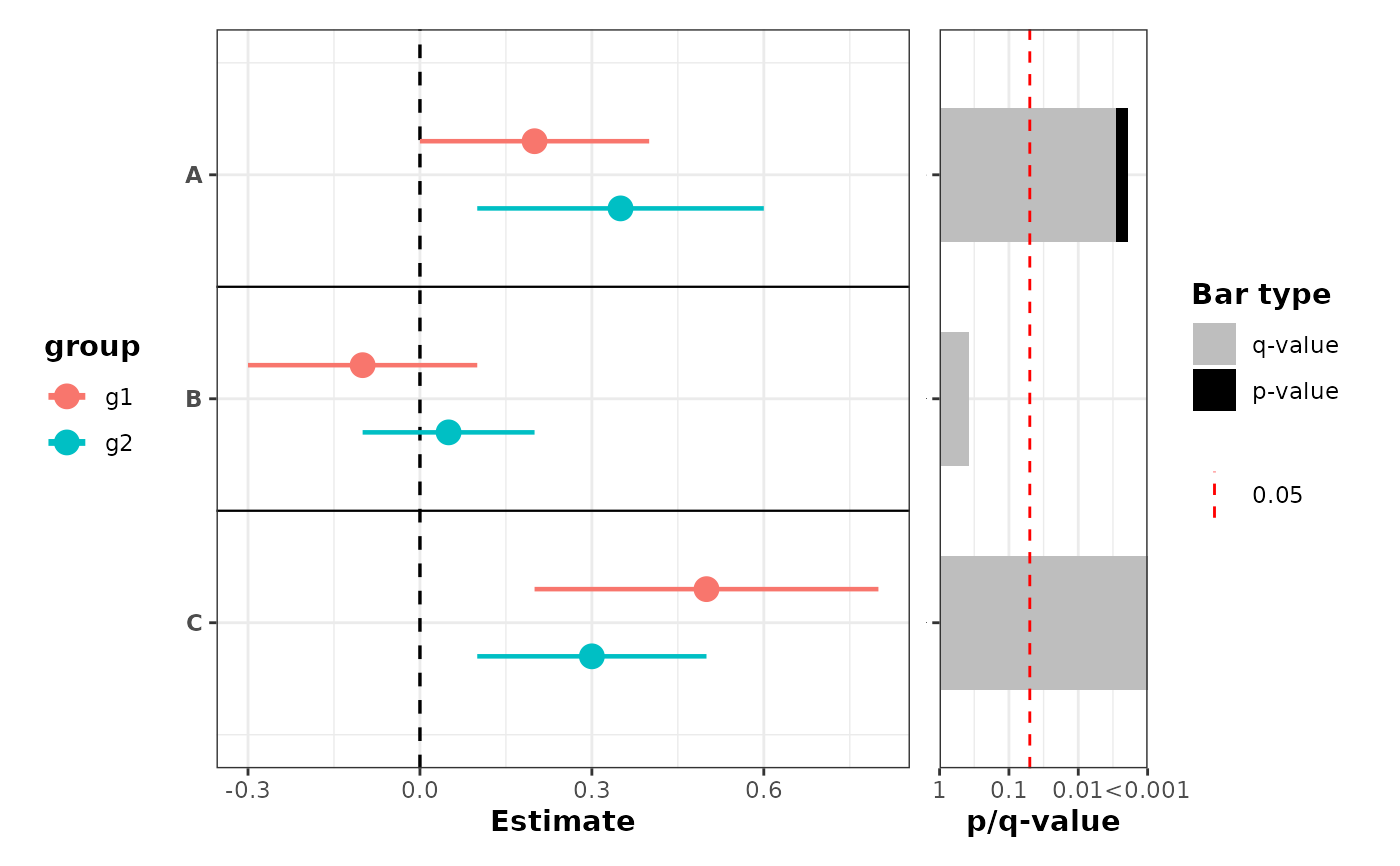

# Grouping with p-value barplot using Fisher's combined p-value
plot_confidence_intervals(
  df,
  effect_size = "est",
  ci_low = "conf.low",
  ci_high = "conf.high",
  id = "cell_line",
  group_col = "group",
  color_col = "group",
  pvalue_col = "pvalue",
  combine_pvalue_method = "fisher",
  mlog10_transform_pvalue = TRUE
)
#> Scale for y is already present.
#> Adding another scale for y, which will replace the existing scale.

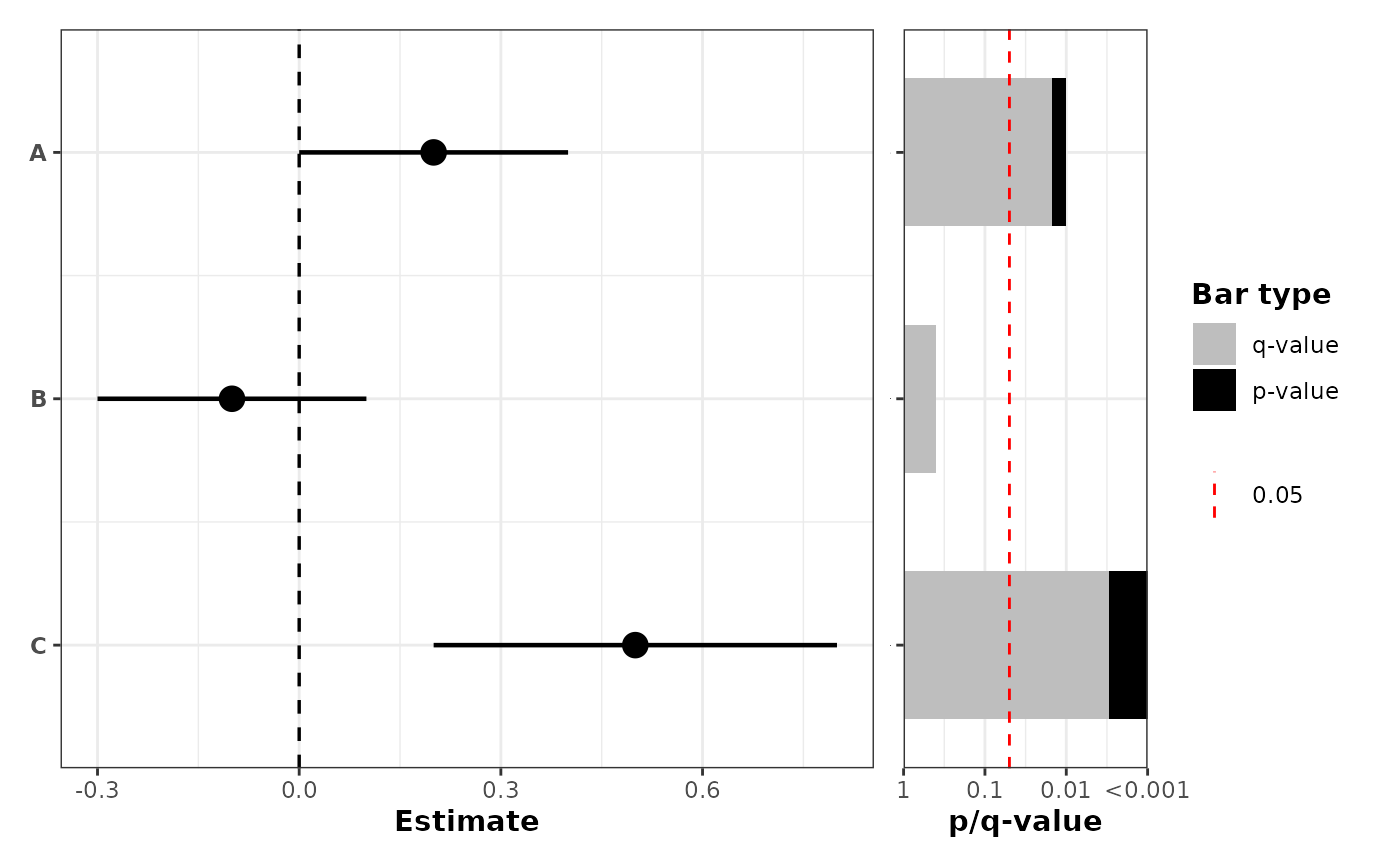

# No grouping, but with p-value barplot on the right
plot_confidence_intervals(
  df[1:3, ],
  effect_size = "est",
  ci_low = "conf.low",
  ci_high = "conf.high",
  id = "cell_line",
  pvalue_col = "pvalue",
  mlog10_transform_pvalue = TRUE
)
#> Scale for y is already present.
#> Adding another scale for y, which will replace the existing scale.

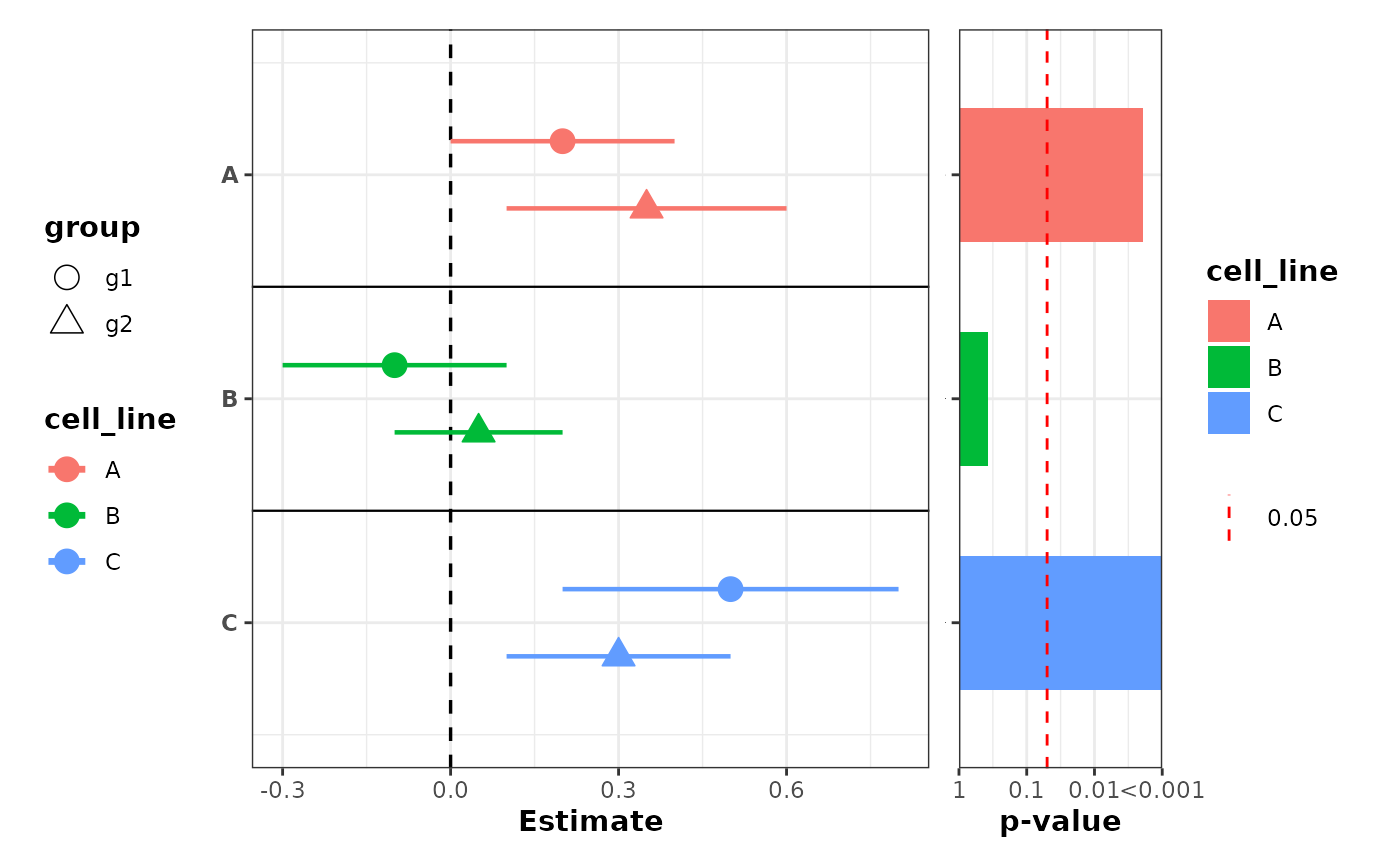

# Color by label and shapes by group, with p-values colored by label
plot_confidence_intervals(
  df,
  effect_size = "est",
  ci_low = "conf.low",
  ci_high = "conf.high",
  id = "cell_line",
  group_col = "group",
  shape_col = "group",
  color_col = "cell_line",
  pvalue_col = "pvalue",
  combine_pvalue_method = "fisher",
  mlog10_transform_pvalue = TRUE,
  fill = "cell_line",
  also_show_qvalue = FALSE
)
#> Scale for y is already present.
#> Adding another scale for y, which will replace the existing scale.
